FESTA6.3E/B 2 x ATEO6 + BASO10 + EPA254 Black
Please sign in so that we can notify you about a reply

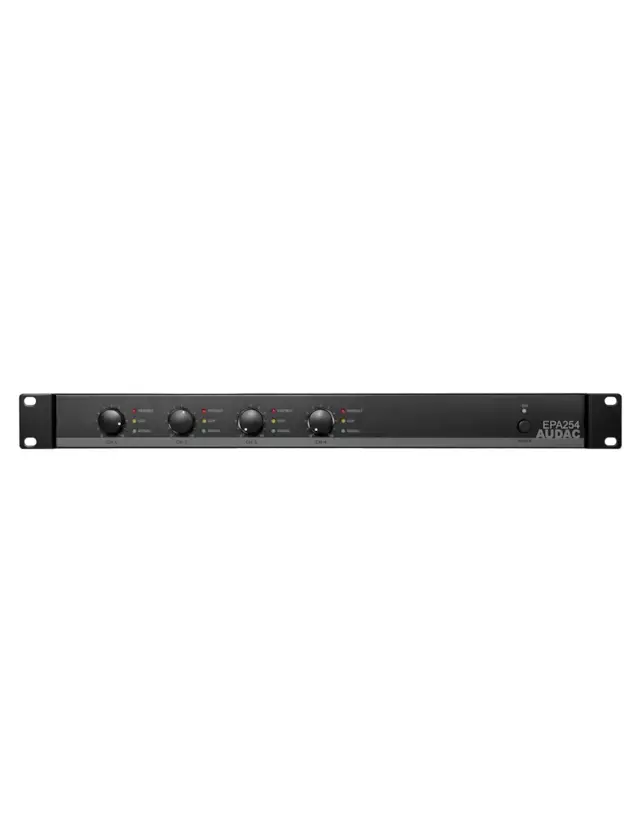

The combination of the ATEO6 loudspeakers' stunning design and BASO10 bass cabinet, both featuring high-quality components, enables the FESTA6.3E set to be installed in any environment, guaranteeing an impressive sound with elegant aesthetics. Powered by an EPA254 Class-D power amplifier, this system, using two ATEO6 loudspeakers and a BASO10 bass cabinet can cover areas of around 100 m² with a warm and powerful sound.
Features
- Elegant design
- CleverMount™ Installation
- High-efficiency Class-D amplifier
- Room-filling bass
Brand:
Audac
Specifications
Product Type:
Wall Speaker, Compact Cabinet, Quad-Channel Amplifier
Coverage Angle:
120° (Horizontal/Vertical)
Number of Included Speakers:
2
Driver Size:
Speaker: 1in (Dome Tweeter)/6in (MF/LF Woofer), Subwoofer: 10in (Ferrite)
Indoor/Outdoor:
Indoor
Music Level:
3
Speech Level:
2
Series:
ATEO, BASO, EPA
Colour:
Black
Applications:
Hotel, Corporate, Residential, Bar & Restaurant, Retail, Education, Club, Museum & Themepark, Sporting Facility, Event
Enclosure Type:
Bass Reflex Cabinet (Subwoofer)
Material:
ABS (Speaker), Plywood with Structured Coating (Subwoofer), Steel (Amplifier)
Humidity:
95%
Operating Temperature Range:
-20 to 60°C (Speaker), -20 to 60°C (Subwoofer), 0 to 40°C (Amplifier)
Included Accessories:
Allen-Key Wrench
Performance
Amplifier Class:
Class D
Impedance Rating:
Speaker: 8Ω, Subwoofer: 8Ω, Amplifier: 12kΩ (Balanced)
SNR Ratio:
>90dB
Loudspeaker Sound Level:
106dB@8Ω/105dB@100V (Speaker), 120dB (Subwoofer)
Loudspeaker Power Rating:
Speaker: 65W (RMS/AES)/240W (Peak), Subwoofer: 225W (RMS/AES)/900W (Peak)
Loudspeaker Frequency Rating:
Speaker: 65Hz to 20kHz@±3dB/55Hz to 20kHz@-10dB, Subwoofer: 54Hz to 1.2kHz@±3dB/38Hz to 2kHz@-10dB
Coverage Area:
100sq m
Amplifier Frequency Rating:
20Hz to 20kHz@±3dB
Amplifier Sensitivity:
0dB@1VRMS
Amplifier Power Rating:
4x250W@4Ω, 4x130W@8Ω, 2x500W@8Ω
Inputs and Ports
Number of I/O Connector:
Speaker:1, Subwoofer: 2, Amplifier: 1 (Input), 1 (Output)
I/O Interface Type:
Speaker: 6-Pin Custom Terminal Block, Subwoofer: Speakon Compatible Connector in Recessed Connector Dish (Linkthrough), Amplifier: 3-Pin XLR Female Connector (Input)/2-Pin Euro Terminal Block (Output)
Power
Voltage Rating:
100 to 120, 220 to 240V AC
Standards
Standards Met:
Energy Star Certified
Dimensions
Width:
19.3cm (Speaker), 32cm (Subwoofer), 48.2cm (Amplifier)
Depth:
21.5cm (Speaker), 38cm (Subwoofer), 33cm (Amplifier)
Height:
34.7cm (Speaker), 38cm (Subwoofer), 4.4cm (Amplifier)
Weight:
3.8kg (Speaker), 10kg (Subwoofer), 4.7kg (Amplifier)
