PURRA5.2E/B 2 x WX502/O + EPA152

Write a review
PURRA5.2E/B
€57500 MSRP
Availability: On backorder
+ −
Log in to see price Add to wish list Add to Project

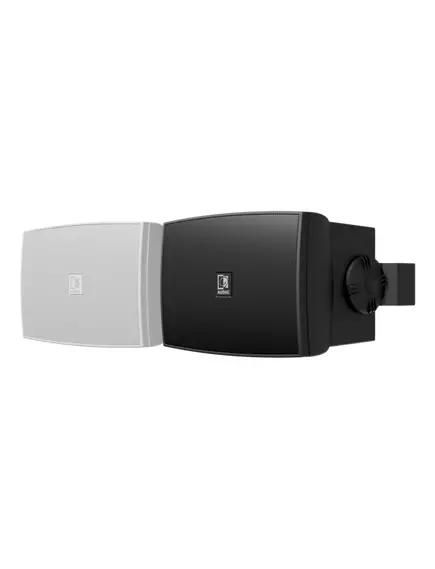

The characteristics of the WX502MK2/O loudspeaker enable the PURRA5.2E set to be installed in places such as terraces, gardens, spas, … offering a weather and humidity resistant solution while guaranteeing an extraordinary sound.

Powered by an EPA152 Class-D amplifier, this system, using two WX502MK2/O loudspeakers, can cover humid and outdoor areas of around 50 m² with true-to-nature high-fidelity music and speech.

Features

  • Compact solution
  • High-quality sound
  • IP55 Ingress protection
  • High-efficiency Class-D amplifier
Brand:
Audac
Specifications
Product Type:
Outdoor Universal Speaker, Dual-Channel Amplifier
Coverage Angle:
110° (Horizontal/Vertical)
Number of Included Speakers:
2
Driver Size:
Speaker: 1in (HF), 5in (LF)
Indoor/Outdoor:
Indoor, Outdoor
Speaker Configuration:
Two Way
Music Level:
2
Speech Level:
3
Series:
WX/O, EPA
Colour:
Black
Applications:
Corporate, Retail, Bar & Restaurant, Museum & Themepark, Sporting Facility, Education, Club, Event
Material:
ABS (Speaker), Steel (Amplifier)
Humidity:
95%
Operating Temperature Range:
-25 to 70°C (Speaker), 0 to 40°C (Amplifier)
Included Accessories:
Mounting Bracket
Performance
Amplifier Class:
Class D
Impedance Rating:
Speaker: 8Ω, Amplifier: 12kΩ (Balanced)
SNR Ratio:
>90dB
Loudspeaker Sound Level:
104dB@8Ω (Speaker), 102dB@100V
Loudspeaker Power Rating:
Speaker: 50W (RMS/AES)/200W (Peak)
Loudspeaker Frequency Rating:
Speaker: 70Hz to 18kHz@±3dB, 55Hz to 20kHz@-10dB
Coverage Area:
50sq m
Crossover Frequency:
2.5kHz
Crossover Type:
Passive Built-In
Amplifier Frequency Rating:
20Hz to 20kHz@±3dB
Amplifier Sensitivity:
0dB@1VRMS
Amplifier Power Rating:
2x150W@4Ω, 2x80W@8Ω, 300W@8Ω
Inputs and Ports
Number of I/O Connector:
Speaker:1, Amplifier: 1 (Input), 1 (Output)
I/O Interface Type:
Speaker: AWX-5 Connector, Amplifier: 3-Pin XLR Female Connector with Male Linkthrough (Input)/Speakon Compatible & 2-Pin Euro Terminal Block (Output)
Power
Voltage Rating:
70/100V
Standards
Standards Met:
Energy Star Certified
Dimensions
Width:
21.2cm (Speaker), 48.2cm (Amplifier)
Depth:
13.6cm (Speaker), 33cm (Amplifier)
Height:
14.7cm (Speaker), 4.4cm (Amplifier)
Weight:
2.5kg (Speaker), 4.1kg (Amplifier)
