SONA2.3+/B 2x ATEO2 + NOBA8A + AMP523MK2 Black
Please sign in so that we can notify you about a reply

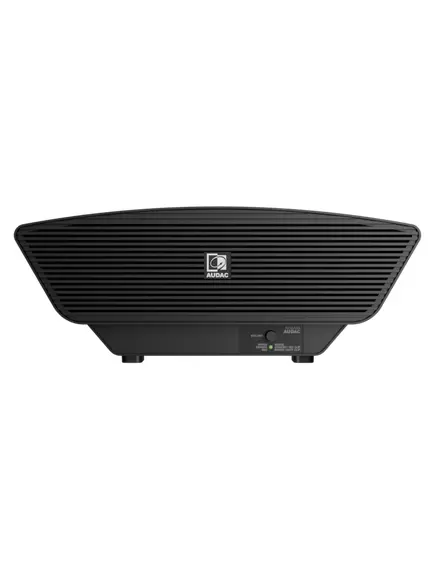

The SONA2.3 series provides a stunning and elegant design whilst delivering a sound experience that will leave its listeners stunned. Thanks to the combination of the extremely compact ATEO loudspeakers and the powerful NOBA bass cabinet of only 149mm thick, a perfect balance between sound clarity and power can be attained. An excellent acoustical match is accomplished by the WaveDynamics™ technology which also provides a bulletproof protection for your audio system. This system, using two ATEO2 loudspeakers and a NOBA8A bass cabinet can cover areas of around 25 m² with clear and powerful background music. The addition of a AMP523MK2 will increase the amount of inputs and open the possibility to control volume and input selection through a web browser or with the AUDAC Touch™ mobile application.
Features
- Innovative & unique design
- High-end sound
- Energy-efficient
- Integrated class-D amplifier
Brand:
Audac
Specifications
Product Type:
Compact Wall Speaker, Compact Active Bass Cabinet, Mini Stereo Amplifier
Coverage Angle:
145° (Horizontal)x170° (Vertical)
Diameter:
8cm (Speaker), 55.8cm (Subwoofer), 10.8cm (Amplifier)
Number of Included Speakers:
2
Driver Size:
Speaker: 2in, Subwoofer: 8in (Ferrite)
Music Level:
2
Speech Level:
1
Series:
ATEO, NOBA, AMP523
Colour:
Black
Applications:
Hotel, Corporate, Residential, Bar & Restaurant, Retail, Education, Club
Enclosure Type:
Bass Reflex Cabinet (Subwoofer)
Material:
ABS (Speaker), Aluminium with Plastic Side Cover (Subwoofer)
Operating Temperature Range:
-20 to 60°C (Speaker)
Included Accessories:
Wall Mounting Bracket, PSD241 Power Supply 24V/1.67A
Performance
Amplifier Class:
Class D
Impedance Rating:
Speaker: 8Ω, Amplifier: 20kΩ (Balanced Stereo)/47kΩ (Balanced Microphone)
SNR Ratio:
>85dB (Subwoofer), >95dB (Amplifier)
Loudspeaker Sound Level:
93dB (Speaker), 108dB (Subwoofer)
Loudspeaker Power Rating:
Speaker: 10W (RMS/AES)/40W (Peak), Subwoofer: 100W (RMS/AES)/400W (Peak)
Loudspeaker Frequency Rating:
Speaker: 120Hz to 20kHz@±3dB/100Hz to 20kHz@-10dB, Subwoofer: 90Hz to 350Hz@±3dB/45Hz to 350Hz@-10dB
Coverage Area:
25sq m
Amplifier Frequency Rating:
47 to 63Hz
Amplifier Sensitivity:
-10 to +4dBV (Balanced Stereo), -45 to -20dBV (Balanced Microphone)
Amplifier Power Rating:
2x15W@4Ω, 2x7.5W@8Ω, 30W@8Ω
Inputs and Ports
Number of I/O Connector:
Subwoofer: 1 (Input), 1 (Output), Amplifier: 5 (Input), 1 (Output), 3 (Other)
I/O Interface Type:
2-Pin Euro Terminal Block (Speaker), Subwoofer: 3-Pin Euro Terminal Block (Input)/2-Pin Euro Terminal Block (Output), Amplifier: Unbalanced Stereo (Input)/Balanced Microphone (Input)/RS-485 & Differential Audio (Input)/RS-232 (Input)/Ethernet (Input)/Ster
Power
Voltage Rating:
24V DC (Power Supply)
Standards
Standards Met:
Energy Star Certified
Dimensions
Depth:
11.5cm (Speaker), 14.9cm (Subwoofer), 16.5cm (Amplifier)
Height:
13.6cm (Speaker), 38.3cm (Subwoofer), 4.4cm (Amplifier)
Weight:
0.3kg (Speaker), 9.7kg (Subwoofer), 0.8kg (Amplifier)
