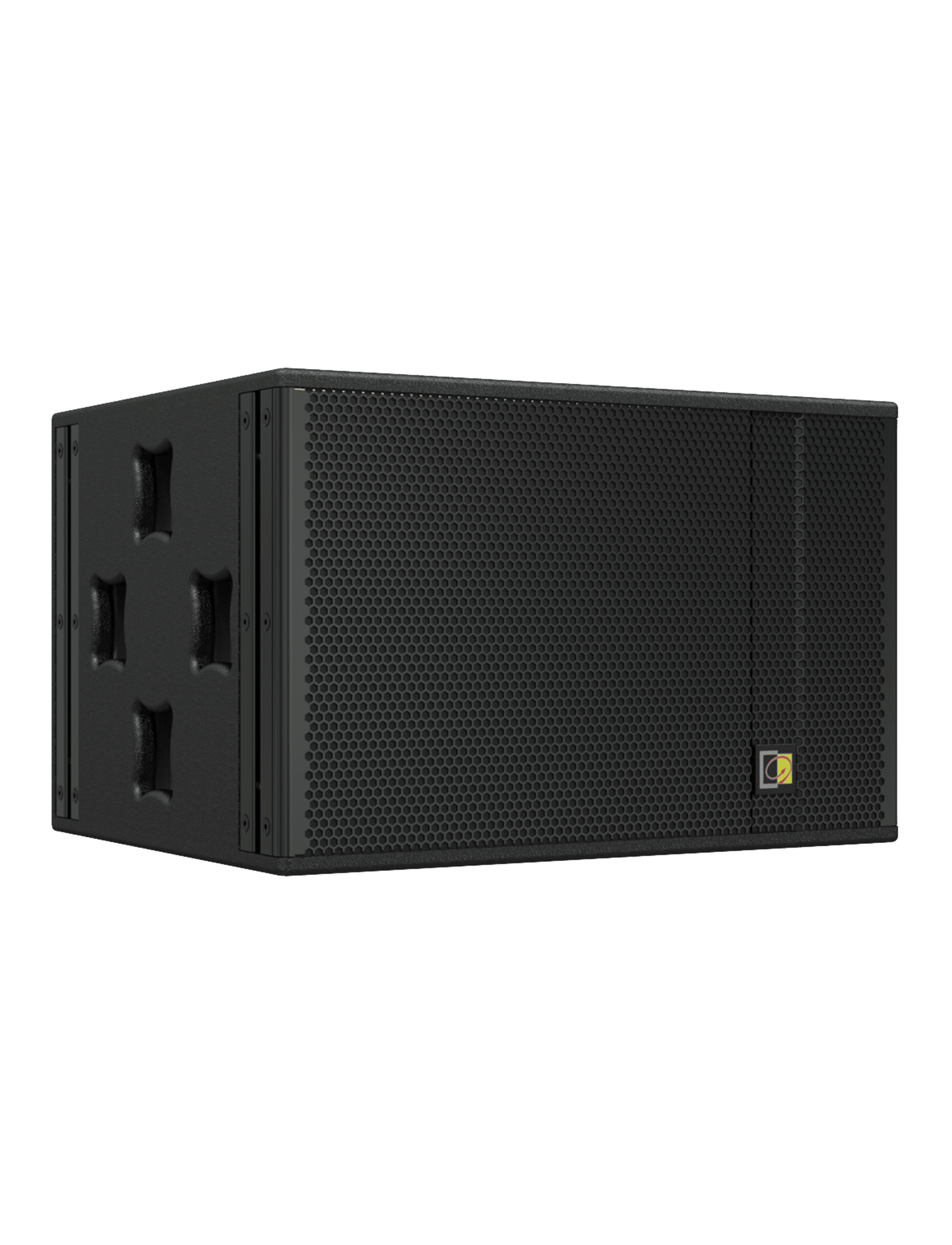

FX3.15 High-Output Cabinet Subwoofer, Three Way, Black, 15" Ferrite
Please sign in so that we can notify you about a reply
The FX series is a unique and versatile speaker system series. When you combine the FX1.18 bass cabinet with the FX3.15 3-way active speaker cabinet, this truly modular system can be scaled and adapted for every application where a powerful system with a high clarity and sound quality is required. The compact enclosures are provided with weatherproof and scratch resistant DuraCoat textured paintwork and are fitted with eight carry handles allowing easy carriage and handling of the system. The integrated metal rigging frame allows easy and secure rigging, allowing multiple cabinets to be rigged together. The FX3.15 is a 3-Way high-output, active driven compact High / Mid / Mid-Bass speaker cabinet which is a part of the unique and versatile FX series system. This three-way cabinet includes a 15” horn-loaded Mid-Bass driver, 6” loaded mid speaker and 1.75” PEEK (Polyether ether ketone) compression driver. The entire system has a power handling of 750 Watt RMS with a maximum power of 1500 Watt. The Mid-Bass section takes part for 500 Watt RMS while the Mid section takes part for 200 Watt RMS and the High section represents 50 Watt RMS. The horn with a coverage pattern of 90° x 40° incorporates both High and Mid frequency drivers which can be rotated allowing complete flexibility in selection of horizontal & vertical as well as left & right positioning. This system shall be active processed and powered by separate amplifiers for each section. The connections for each sections are performed using two 8-pin speakon compatible connectors, allowing linkthrough when multiple identical speakers are used in the same system.
Features
- High quality 18 mm plywood
- Integrated carry handle on both sides
- Integrated metal rigging frame
- DuraCoat™ texture paintwork
- IP55 Ingress protection
- High output 3-way active driven system
- 90° x 40° Rotatable horn
Brand:
Audac
Specifications
Product Type:
High-Output Cabinet Subwoofer
Coverage Angle:
90° (Horizontal)x40° (Vertical)
Driver Size:
15in (Ferrite LF), 6in (MF), 1.75in (HF)
Speaker Configuration:
Three Way
Mounting Type:
Wall Mount
Sound Level:
134dB
Series:
FX
Power Rating:
750W (RMS/AES), 3000W (Peak)
Colour:
Black
Applications:
Bar & Restaurant, Sporting Facility, Event, Club, Education, Concert Venue
Enclosure Material:
Solid Plywood
Enclosure Type:
Bass
Performance
Impedance Rating:
8Ω
Frequency Rating:
130 to 20kHz@±3dB, 85Hz to 20kHz@-10dB
Crossover Type:
Active Driven System
Inputs and Ports
Number of I/O Connector:
2
I/O Interface Type:
8-Pin Speakon Compatible Connector
Dimensions
Width:
71.4cm
Depth:
58cm
Height:
45.6cm
Weight:
47.5kg
