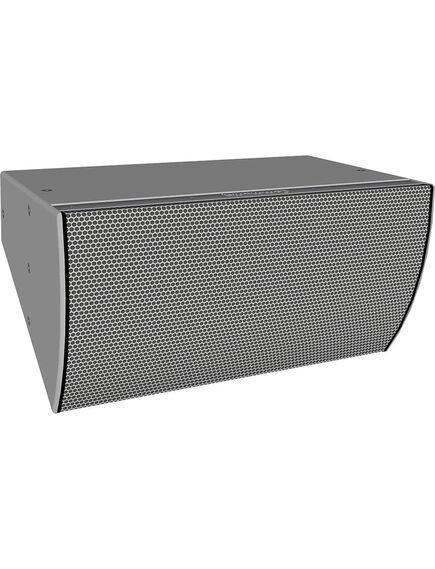

IP8-1122WR94 High Power Point Source Loudspeaker, Two Way, Grey, 90° Hx40° V
Please sign in so that we can notify you about a reply
I SERIES Point Source 800 Loudspeakers provide exemplary acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I SERIES includes a wide variety of arrayable, rotatable coverage patterns and a comprehensive selection of modular bracket systems that accelerate system design and system commissioning.
FEA-optimized linear suspensions, high-flux neodymium motors, and integral demodulation rings ensure precise control and very low distortion at high SPL levels. The custom long-excursion LF driver delivers deep bass response and a balanced midrange in the most demanding applications. The HF compression driver's non-metallic diaphragm provides natural, transparent sound quality that accurately reproduces and complements any source.
The rotatable 13-inch (330mm) HF wave guide provides well-defined coverage and a smooth off-axis response that enhances arrayability. Individually voiced crossovers produce proper beamwidth matching transitions and identical sonic signatures, permitting horn patterns to be mixed throughout an installation. Additionally, user selectable single amp or biamp operating modes expand application flexibility.
Features
- Innovative low profile modular bracket systems create elegant arrays with simplified suspension
- Large rotatable waveguide with individually voiced crossover, single amp / biamp selectable
- Exceptional sound quality and clarity at very high output levels
- Lightweight and compact with deep LF extension
- High-flux, linear neodymium motors with demodulation rings for very low distortion
Brand:
Biamp
Specifications
Product Type:
High Power Point Source Loudspeaker
Coverage Angle:
90° (Horizontal)x40° (Vertical)
Number of Included Speakers:
1xLF, 1xHF
Driver Size:
12in (LF), 1.4in (HF)
Indoor/Outdoor:
Outdoor
Speaker Configuration:
Two Way
Mounting Type:
Frame Mount
Sound Level:
Passive: 130dB (Peak), 124dB (Continuous), LF: 129dB (Peak), 123dB (Continuous), HF: 131dB (Peak), 125dB (Continuous)
Series:
I Series Point Source 800
Power Rating:
800W (Continuous), 3200W (Peak)
Colour:
Grey
Applications:
Main PA (Small to Medium Size Venues): Houses of Worship, Auditorium, Restaurant, Meeting Room, Theater, Corporate A/V System, Distributed or Fill (Larger Size Venues): Arena, Stadium, Night Club, Theatre, Themed Entertainment, Larger Houses of Worship
Finish:
Low Gloss
Enclosure Material:
Poly Glass
Enclosure Type:
Deep Bass
Performance
Impedance Rating:
8Ω
Frequency Rating:
44Hz to 18.5kHz
Crossover Type:
Individually Voiced
Amplifier Power Rating:
800 to 1600W (Passive), 600 to 1200W (LF), 80 to 160W (HF)
Inputs and Ports
Number of I/O Connector:
2xInput
I/O Interface Type:
Screw Terminal Block
Power
Voltage Rating:
80V (Passive), 69V (LF), 25V (HF)
Standards
Standards Met:
IP55W per IEC 60529, MIL-STD-810G
Dimensions
Width:
36.8cm
Depth:
45cm
Height:
71.1cm
Weight:
24.9kg
Shipping Weight:
29kg
