LABI1-SB18p Powered Subwoofer, One Way, 18 in, Black, 1200W, Omnidirectional
Please sign in so that we can notify you about a reply

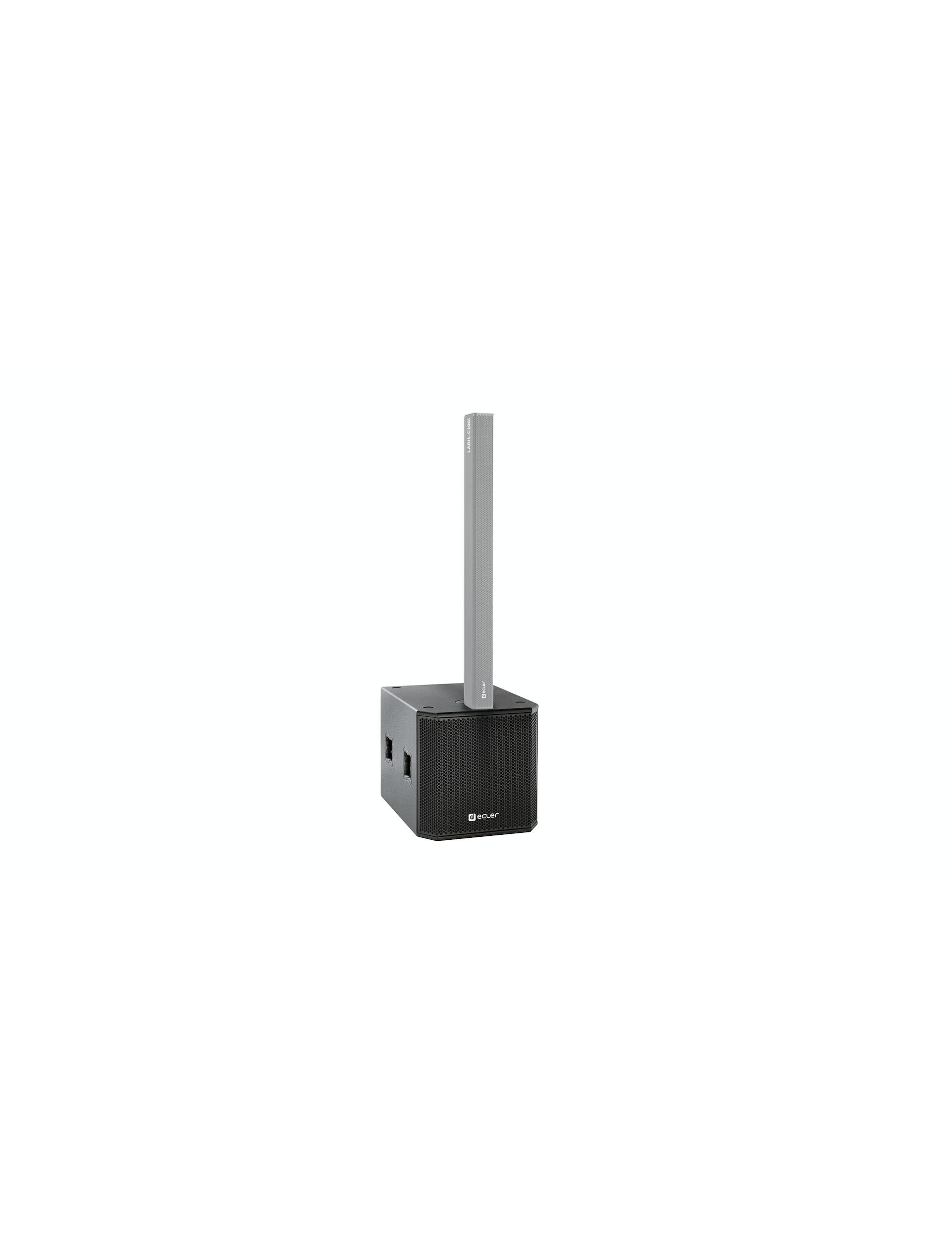

LABI1-SB18p is an 18” powered subwoofer, designed for fixed installations and portable applications. A stand alone compact subwoofer or combined with LABI1-C100i to create a complete powerful solution, easy to mount and plug and play. It performs 2400W Class D built-in amplification power: 1 x 1200W for its low frequency woofer, and 2x600W amplifiers, able to power up to 4 x LABI1-C100i. It also features DC protection to avoid damage to the loudspeakers. LAB1-SB18p also performs 18 factory presets - selectable through the LCD screen - allowing the user to choose different configurations, depending on the needs required and the desired performance of the system. LABI1 series offers a modular solution to satisfy the most demanding fixed installations and mobile public address applications. Combining the different products of the series, it can fulfill any requirement.
Features
- 18 in powered subwoofer with a compact design
- 2400W built-in Class D amplification power
- Low frequency amplifier: 1200W
- Speaker output amplifier: 2x600W @ 4Ω
- Frequency range (-10dB): 38Hz - 250Hz
- Max. SPL @ 1m: 132 dB
- 2 x input connectors: XLR3 balanced
- 2 x XLR stack output connectors: XLR3 balanced
- 2 x powered output connectors: Speakon®
- 18 factory presets
- User control interface with LCD
- Black finish available
Brand:
Ecler
Specifications
Product Type:
Powered Subwoofer
Coverage Angle:
Omni Directional
Driver Size:
18in
Speaker Configuration:
One Way
Sound Level:
132dB
Series:
LABI1
Power Rating:
1200W
Colour:
Black
Applications:
Hospitality, Leisure, Sports & Wellness
Enclosure Material:
Birch Plywood
Included Accessories:
Power CON TRUE1 TOP Connectors (NAC3FX-W-TOP & NAC3MX-WTOP), 250cm AC Cable (EU plug) and 120cm Speakon
Performance
Amplifier Class:
Class D
Impedance Rating:
8Ω
Frequency Rating:
38 to 250Hz
Amplifier Power Rating:
2400W
Inputs and Ports
Number of I/O Connector:
2xXLR, 2xXLR3, 2xSpeakon®
I/O Interface Type:
XLR, XLR3, Speakon®
Power
Voltage Rating:
100 TO 240V AC
Standards
Standards Met:
IP20 Rated
Dimensions
Width:
51.3cm
Depth:
70.4cm
Height:
51.3cm
Weight:
39.1kg
Shipping Weight:
42.7kg
