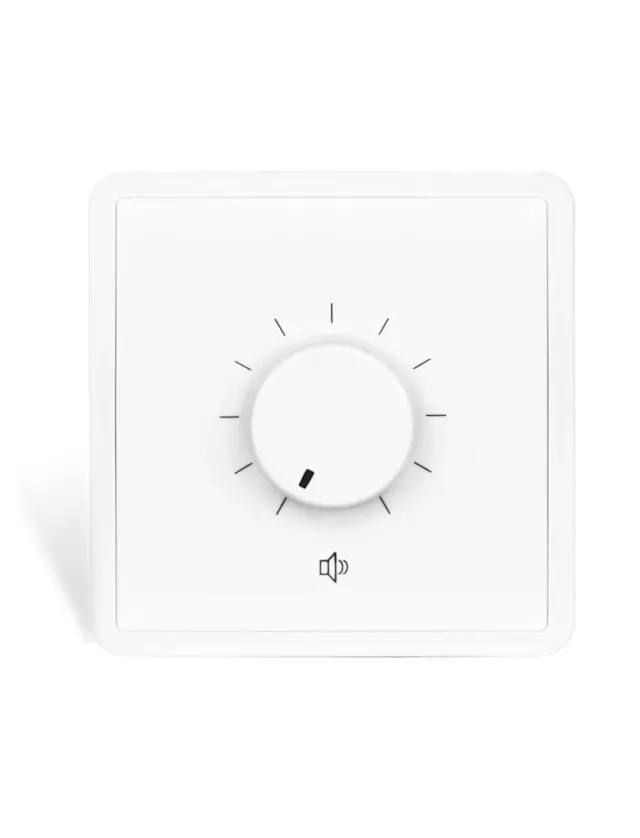

VC3102/W 100V volume controller 100W 80 x 80mm White version
Please sign in so that we can notify you about a reply
The VC3102 is a 100 Volt volume controller capable of handling a power up to 100 Watt. The volume is adjustable with a rotatable dial in 11 steps of 3 dB. It is equipped with a relay and separate input for the reception of 24V priority signals. This means that when a priority signal occurs, the volume will be automatically switched to maximum level. This can be very useful for emergency and evacuation messages. Due to it’s slim and good looking design, these volume controls will blend into all kinds of different environments or interiors. The construction is made of sturdy ABS and therefore suitable for big projects in industrial buildings as well as standard home interiors. The dimensions are 80 mm x 80 mm, and a built-in depth of 46 mm is required. The connections are made at the back with screw terminal blocks.
Features
- Applications:
- Residential
- Corporate
Brand:
Audac
Specifications
Product Type:
Volume Controller
Mounting Type:
Flush Mount, Surface Mount
Power Rating:
200W
Colour:
White
Material:
ABS
Performance
Attenuation Step:
11
Power
Voltage Rating:
100V
Relay Voltage:
24V
Dimensions
Width:
8cm
Depth:
5cm
Height:
8cm
Weight:
0.3kg
Shipping Weight:
0.3kg
