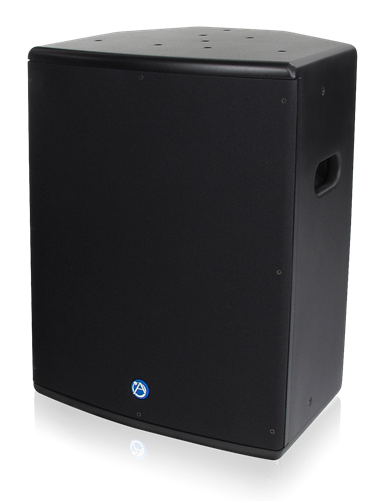

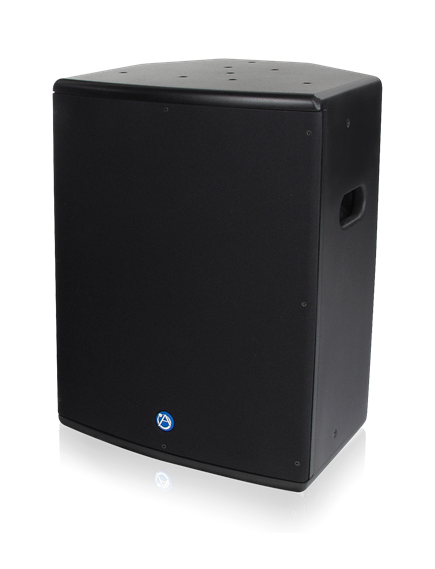

SM12CXT-B 12" 2-Way Compression Driver Coaxial Surface Mount Speaker with 60-Watt 70V Transformer - Black
Please sign in so that we can notify you about a reply
SM Series speakers offer quality sound reproduction and contemporary styling. The SM12CXT-B features the 12CXT60—a 250 watt speaker that combines a 12" diameter, low frequency transducer and a 1" exit, compression driver. The speaker has a curvlilinear, treated-paper cone for lower harmonic distortion, and a built-in crossover network for proper frequency transition between the two reproducers. The low frequency transducer and the high frequency driver feature permanently aligned voice coils for low distortion performance. The copper coils have Polyimide voice coil formers. The SM12CXT-B features a wood enclosure with a metal grille. Internal hardware, for flying, includes multiple (12) 1/4"-20 inserts for overheard suspension in most any orientation. A 90 degree conical pattern (2 kHz octave band) and amazing efficiency make the SM12CXT-B a perfect choice for a wide variety of applications including school auditoriums, gymnasiums, cafeterias, church sanctuary systems, and more.
Features- Attractive, Heavy-Duty Grille Assembly
- Barrier Strip Input for 70.7/100V/8 Ohm or Parallel 4 Pole Speak-ON™ Input for 8 Ohm Operation Only
- Durable Rough-Coat Finish
- Fuse Protection for Low and High Frequency Drivers
- High Performance Atlas Sound Compression Driver Coaxial Loudspeakers in Versatile, Flyable, Wood Enclosure
- Includes Internal, High Efficiency 60 Watt 70.7/100V Transformer (May Be Bypassed for 8 Ohm Operation)
- Multiple (12) 1/4"-20 Inserts, Providing Fly Points for a Variety of Mounting Configurations
- Optional Brackets for Wall Mounting
- Pre-Drilled with T-Nut Inserts for Omnimount™ Bracket Wall Mounting
- Unique Input Panel Allows Use of Standard 4" Square Box Cover (Raco 753 or eq.) for Applications Where Flex Conduit is Required for Termination
Brand:
Atlas IED
Specifications
Product Type:
High Performance Coaxial Loudspeaker
Coverage Angle:
90°(Conical)
Speaker Configuration:
Two Way
Sound Level:
117dB (70 V@60 W), 123dB (8Ω@250 W)
Series:
SM
Power Rating:
250W (Continuous)
Colour:
Black
Applications:
School Auditorium, Gymnasium, Cafeterias, Church Sanctuary System
Material:
Wood (Enclosure), Powder-Coated CRS (Grill)
Performance
Frequency Rating:
55Hz to 15kHz
Amplifier Power Rating:
250W@8Ω
Inputs and Ports
I/O Interface Type:
Barrier Strip
Input Connector Type:
Barrier Strip
Power
Voltage Rating:
70.7V, 100V
Dimensions
Width:
36.8cm
Depth:
35.7cm
Height:
48.3cm
Weight:
17.7kg
Shipping Weight:
23.6kg
