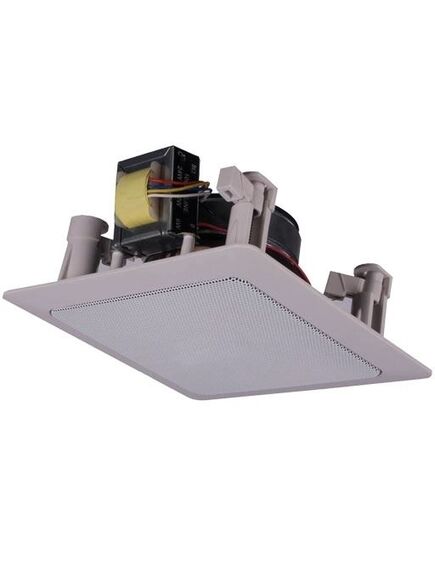

WS524/W Square In-Wall Speaker, Two Way, 5-1/4 in, 60W, White, 100°x100°
Please sign in so that we can notify you about a reply
The WS series loudspeakers are high-quality in-wall/ceiling loudspeakers, delivering exceptional sound quality and value for a wide variation of applications, ranging from paging and announcements to background music systems in a wide range of business applications, including hotels, restaurants and pubs, corporate offices, retail stores, etc. The WS524 in-wall/ceiling loudspeaker features a 5 ¼” driver with a coaxially mounted 1” tweeter, having a continuous power handling of 30 Watt and a maximum power handling of 60 Watt. The 2-way construction makes the WS524 the perfect match for a wide variation highly demanding of applications, guaranteeing a high-quality and true-to-nature reproduction of music and speech. The moisture proof treatment on the speakers’ cone and aluminum front grill protects it for installation in humid or outdoor environments. A multi-tapping line transformer fitted with Fast-con™ allows fast and smooth connections to 100 Volt public address or low impedance systems. The mounting of the loudspeaker into the wall or ceiling is achieved with a Quick-fix mechanism, offering a great installers convenience and lifetime stability. The construction of the speakers’ housing is made out of high-quality ABS, while the front is covered by a solid powder-coated aluminum grille. Custom painting is possible for a total blending into any environment.
Features
- FastCon™ connections
- Aluminum grill
- QuickFix installation system
- Multi-tapping 100V line transformer
- 5 1/4" woofer with 1"coaxially mounted tweeter.
Brand:
Audac
Specifications
Product Type:
Square In-Wall Speaker
Coverage Angle:
100° (Horizontal/Vertical)
Speaker Configuration:
Two Way
Series:
WS
Power Rating:
60W (Program), 30W (RMS/AES)
Colour:
White
Applications:
Bar, Restaurant, Corporate, Retail, Hotel
Material:
ABS, Aluminium (Grill)
Performance
Impedance Rating:
8Ω
Frequency Rating:
60Hz to 20kHz@±3dB, 50Hz to 20kHz@-10dB
Inputs and Ports
Input Connector Type:
Fast-Con™ Connection
Power
Voltage Rating:
100V
Standards
Standards Met:
CE, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55020:2007+A12:2016, EN 60065:2014, IEC 60065(ed.8)
Dimensions
Width:
18cm
Depth:
9cm
Height:
18cm
Weight:
1.1kg
Shipping Weight:
1.2kg
