AV-CON300-IP Camera Controller for Avonic Camera
Please sign in so that we can notify you about a reply

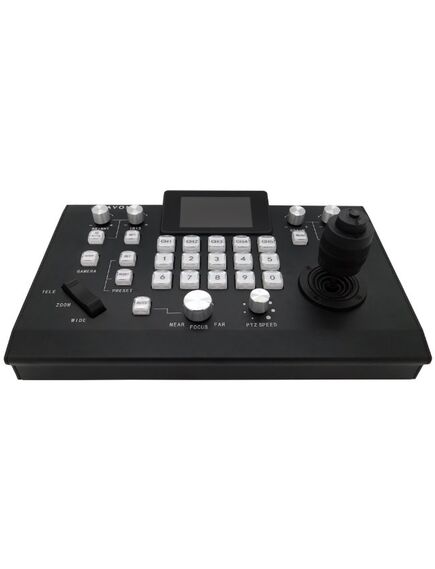

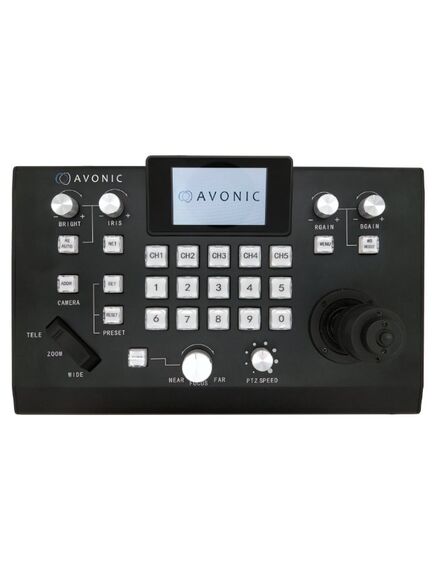

The Avonic AV-CON300-IP is an advanced IP PTZ camera controller and compatible with the Avonic cameras as well with other brands that supports VISCA, Visca over IP, Pelco-D and Pelco-P protocols. Switch easily between auto and manual focus, Aperture and white balance settings, save and recall presets and connect multiple controllers to multiple cameras.
Features- Number of presets: With this controller it is possible to control up to 255 cameras and up to 10 presets per camera
- Connection: The CON300-IP controller supports the VISCA, Visca over IP, Pelco-D and Pelco-P protocol and can be connected to RS232/485 or via LAN Ethernet connection
- Direct Control: This controller gives you direct control over the most important camera settings like Pan, Tilt, Zoom. But also PTZ speed, Focus, Iris, Brightness, White Balance and R/B Colour correction can be controlled easily Access all other settings of the camera easily through the OSD of the camera using the controller
- Mix ‘n match serial and IP control: Due to the added IP functionality the AV-CON300-IP is a true hybrid solution for new and existing installations
Brand:
Avonic
Specifications
Product Type:
Camera Controller
Power Rating:
8W
For Use With:
Avonic Camera
Maximum Operating Temperature:
40°C
Applications:
Education, Video Conferencing, Broadcasting, Live Events, Churches, Healthcare, Courtroom
Humidity:
≤90%
Minimum Operating Temperature:
0°C
Includes:
CON300 PTZ Camera Controller, Power Supply Unit, RJ45-8DIN Male Cable, 9DSUB-Female Cable
Performance
Video Bit Rate:
2400, 4800, 9600, 19200, 38400, 115200bps
Inputs and Ports
Interface Type:
5xRJ5 RS-485/RS-232L, 1xRJ5 IP
Power
Input Voltage:
12V DC
Power Jack Type:
EIAJ-4 - Philmore 255 Plug
Current Rating:
3A
Standards
Standards Met:
FCC, CE
Dimensions
Length:
29.5cm
Width:
18.5cm
Height:
7cm
Weight:
1.7kg
Shipping Weight:
2.4kg
No reviews found
