CM-CON100 Camera Controller for Avonic Camera
Please sign in so that we can notify you about a reply

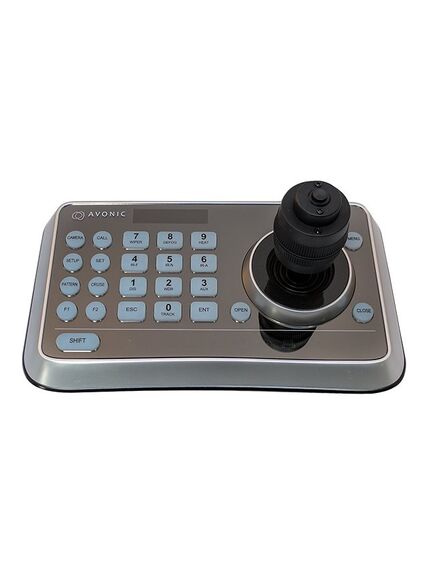

The Avonic CM-CON100 is a compact PTZ camera controller. With this controller it is possible to control up to 255 camera’s and using up to 255 presets. The controller supports the Visca, Pelco-D and Pelco-P protocol and can be connected with RS232/485. The Avonic CM-CON100 is therefore compatible with the Avonic camera’s as well with other brands that supports these protocols. Switch easily between auto and manual focus, save and load presets, and connect multiple controllers to multiple camera’s.
Features- Number of presets: With this compact controller, it is possible to control up to 255 cameras and use up to 255 presets
- Connection: Easy to connect with RS232 , RS485
- Control: Every setting of the camera can be controlled by accessing the OSD of the camera through the controller. Directly control the camera’s Pan, Tilt, Zoom and Focus
Brand:
Avonic
Specifications
Product Type:
Camera Controller
Power Rating:
<2W
For Use With:
Avonic Camera
Maximum Operating Temperature:
40°C
Applications:
Education, Video Conferencing, Broadcasting, Live Events, Churches, Healthcare, Courtroom
Humidity:
≤90%
Minimum Operating Temperature:
0°C
Includes:
CM-CON100 PTZ Camera Controller, Power Supply Unit
Performance
Video Bit Rate:
2400, 4800, 9600, 19200, 38400bps
Inputs and Ports
Interface Type:
RS-485, RS-232
Power
Input Voltage:
12V DC
Power Jack Type:
EIAJ-4 - Philmore 255 Plug
Current Rating:
0.5A
Standards
Standards Met:
FCC, CE
Dimensions
Length:
20cm
Width:
12cm
Height:
10.3cm
Weight:
0.5kg
Shipping Weight:
0.5kg
