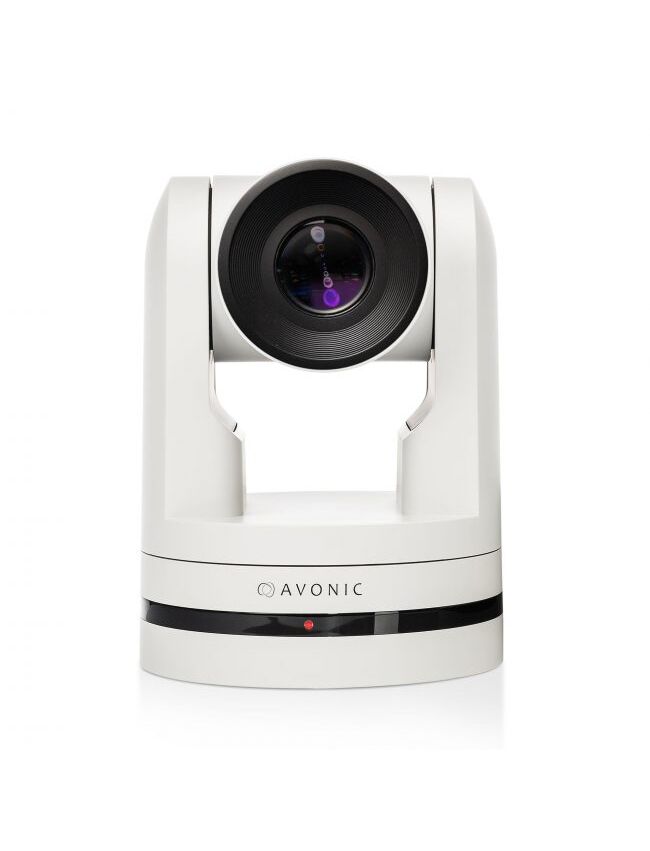

AV-CM93-IP-W PTZ Camera, White, 30xLens
Please sign in so that we can notify you about a reply
The CM93 is the most versatile PTZ camera from Avonic, delivering 4K Ultra HD output at 60fps. Designed for fixed installations, the CM93 comes with 50x zoom in Full HD and 30x zoom in 4K. Available as IP or NDI®|HX, setting the new standard in ultra-low latency. The new standard in 4K PTZ cameras has a 59.2°-degree wide-angle lens and simultaneous HDMI 2.0, 3G-SDI, USB 2.0, and IP stream outputs. The high-quality Sony CMOS sensor with HDR support has the ability to deliver pristine image quality, even under low light conditions. Pan, Tilt, and Zoom your way into outstanding high-quality 4K video content with Avonic’s CM93-IP or CM93-NDI PTZ Camera. Also available in black.
Brand:
Avonic
Specifications
Product Type:
PTZ Camera
Lens Type:
30x
Video Stream Type:
Main Stream, Sub Stream
Horizontal Angle of View:
59.2° (Wide), 2.5° (Tele)
Tilt Speed Range:
0.15 to 70°/s
Number of Preset:
255
Horizontal Rotation Range:
±170°
Minimal Illumination:
0.05Lux@F1.6
Vertical Angle of View:
34.6° (Wide), 1.4° (Tele)
Audio Compression Type:
AAC
Sensor Type:
1/1.8in 8.42 MP High SNR CMOS
Vertical Rotation Range:
-30 to +90°
Special Features:
Fast over IP, Fluent 4K60 Video, Every Environment, Tested and Validated
Power Rating:
18W
Support Protocols:
RTSP, RTMP, ONVIF, SRT, Multicast, Unicast
Colour:
White
Applications:
Education, Large Conferencing, Video Conferencing, Worship, Webcast, Broadcasting
Operating Temperature Range:
-5 to 35°C
Performance
Video System Type:
HDMI: 2160pixels (60 fps), 2160pixels (59 fps), 2160pixels (50 fps), 2160pixels (30 fps), 2160pixels (25 fps), 1080pixels (60 fps),1080pixels (59 fps), 1080pixels (50 fps), 1080i (60 fps), 1080i (59 fps), 1080i (50 fps), 1080pixels (30 fps), 1080pixels (2
Main Stream Resolution:
1920x1080pixels, 1280x720pixels, 3840x2160pixels
Bit Rate Type:
CBR, VBR
Video Bit Rate:
64 to 81920Kbps (Main Stream), 64 to 5120Kbps (Sub Stream)
Video Signal-to-Noise Ratio:
>50dB
Sub Stream Resolution:
1920x1080, 720x480, 640x480, 640x360, 320x240pixels
Shutter Time:
1/60 to 1/10000sec
Frame Rate:
60fps (Main Stream), 30fps (Sub Stream)
Video Compression Type:
H.265, H.264, MJPEG
Scanning Mode:
Progressive, Interlaced
Audio Bit Rate:
32Kbps, 64Kbps, 96Kbps, 128Kbps
Pan Speed Range:
0.15 to 120°/s
Preset Accuracy:
0.1
Inputs and Ports
Audio Interface Type:
Line In
SD Output Type:
3G-SDI, 1080pixels (60 fps)
HD Output Type:
HDMI Version 2.0 up to 4K60
USB Type:
USB2.0: Type B 2160pixels (30 fps)
Communication Interface:
RS-232 Mini DIN-8, RS-485 2-Pin Phoenix
Interface Type:
RJ45
Power
Input Voltage:
12V
Power Jack Type:
EIAJ-4 - Philmore 255 Plug
Current Rating:
2A
Dimensions
Length:
30cm
Width:
30cm
Depth:
23.5cm
Shipping Weight:
2.5kg
