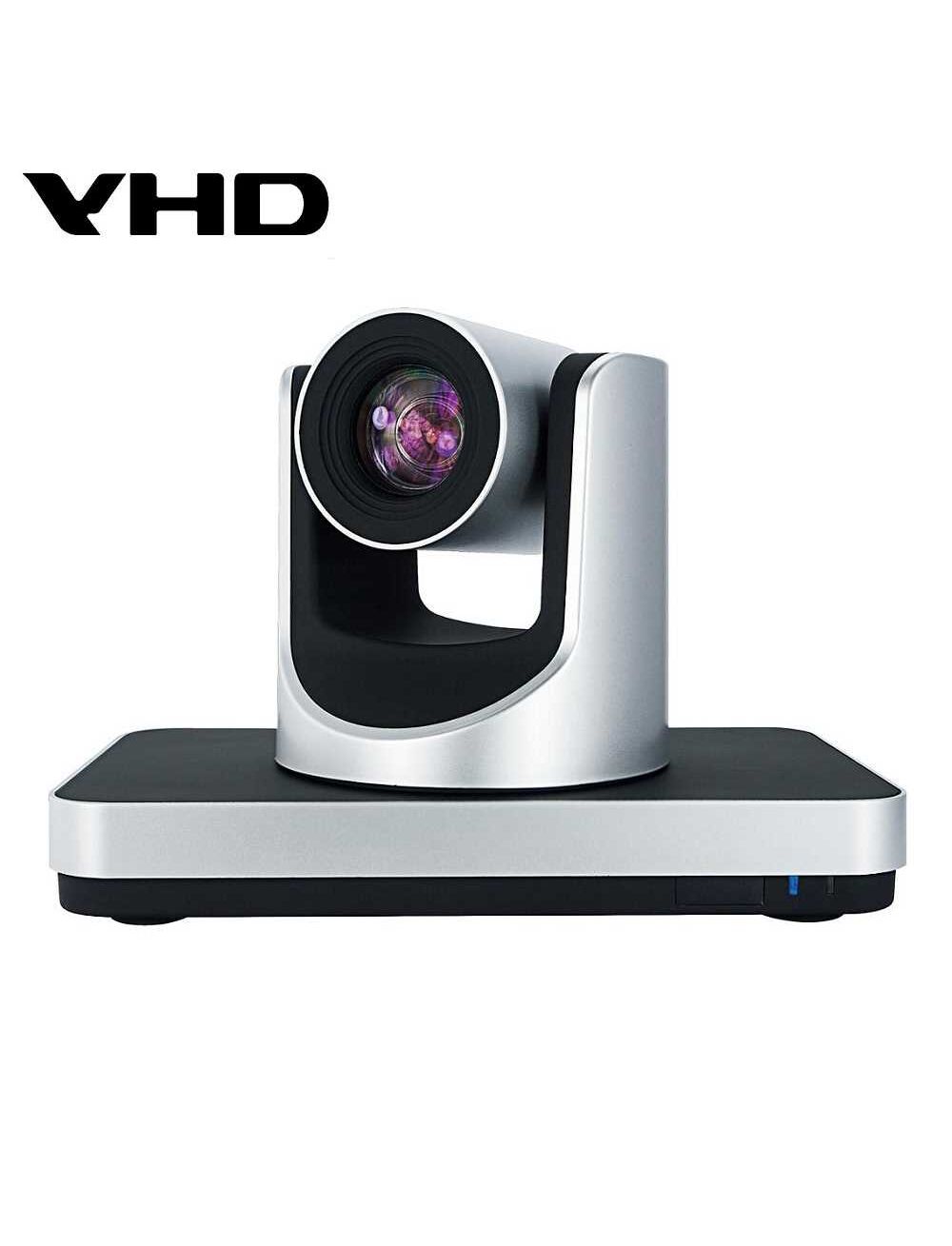

V600 FHD Video Conferencing Camera, cmOS,1/2.7inch
Please sign in so that we can notify you about a reply
VHD-V600 PTZ camera supports H.265 encoding allowing Full HD 1080p/50/60 video streaming with ultra-low bandwidth
Brand:
VHD
Specifications
Product Type:
Video Conference Camera
Lens Type:
20xf4.42mm, 88.5mm, f1.8, f2.8
Video Stream Type:
Main Stream, Sub Stream
Horizontal Angle of View:
60.7 to 3.36°
Tilt Speed Range:
1.7 to 69.9°/s
Number of Preset:
255
Horizontal Rotation Range:
±170°
Minimal Illumination:
0.5Lux@(F1.8, AGC ON)
Vertical Angle of View:
34.1 to 1.89°
Audio Compression Type:
AAC
Sensor Type:
1/2.7in CMOS Effective Pixel: 2.07M
Vertical Rotation Range:
-30 to +90°
Power Rating:
12W
Support Protocols:
TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast
Operating Temperature Range:
-10 to +40°C
Performance
Video System Type:
1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50
Main Stream Resolution:
1920x1080pixels, 1280x720pixels, 1024x576pixels
Bit Rate Type:
Fixed Rate, Variable Rate
Video Bit Rate:
128 to 8192Kbps
Video Signal-to-Noise Ratio:
≥55dB
Digital Noise Reduction:
2D and 3D Digital Noise Reduction
Sub Stream Resolution:
720x576pixels, 720x480pixels, 320x240pixels
Shutter Time:
1/25 to 1/10000sec
Frame Rate:
1 to 50fps (50Hz), 1 to 60fps (60Hz)
Video Compression Type:
H.265/H.264/MJEPG
Scanning Mode:
Progressive
Audio Bit Rate:
96Kbps, 128Kbps, 256Kbps
Pan Speed Range:
1.7 to 100°/s
Preset Accuracy:
0.1°
Inputs and Ports
Audio Interface Type:
1-Ch 3.5mm Audio Interface, Line In
SD Output Type:
1xCVBS RCA Jack, 1Vp-p, 75Ω
HD Output Type:
1xHDMI Version 1.3, 1x3G-SDI BNC Type, 800mVp-p, 75Ω, Along to SMPTE 424M Standard
USB Type:
1xUSB2.0 a Type Jack
Communication Interface:
1xRS-232 in 8-Pin Min DIN, Max Distance 30m, Protocol VISCA/Pelco-D/Pelco-P, 1xRS-232 Out 8-Pin Min DIN, Max Distance 30m, Protocol VISCA Network Use Only, 1xRS-485 2-Pin Phoenix Port, Max Distance 1200m, Protocol VISCA/Pelco-D/Pelco-P
Interface Type:
1xRJ5 10M/100M Adaptive Ethernet Port
Power
Input Voltage:
12V DC
Current Rating:
1.0A
Dimensions
Length:
24cm
Width:
14.4cm
Depth:
16cm
