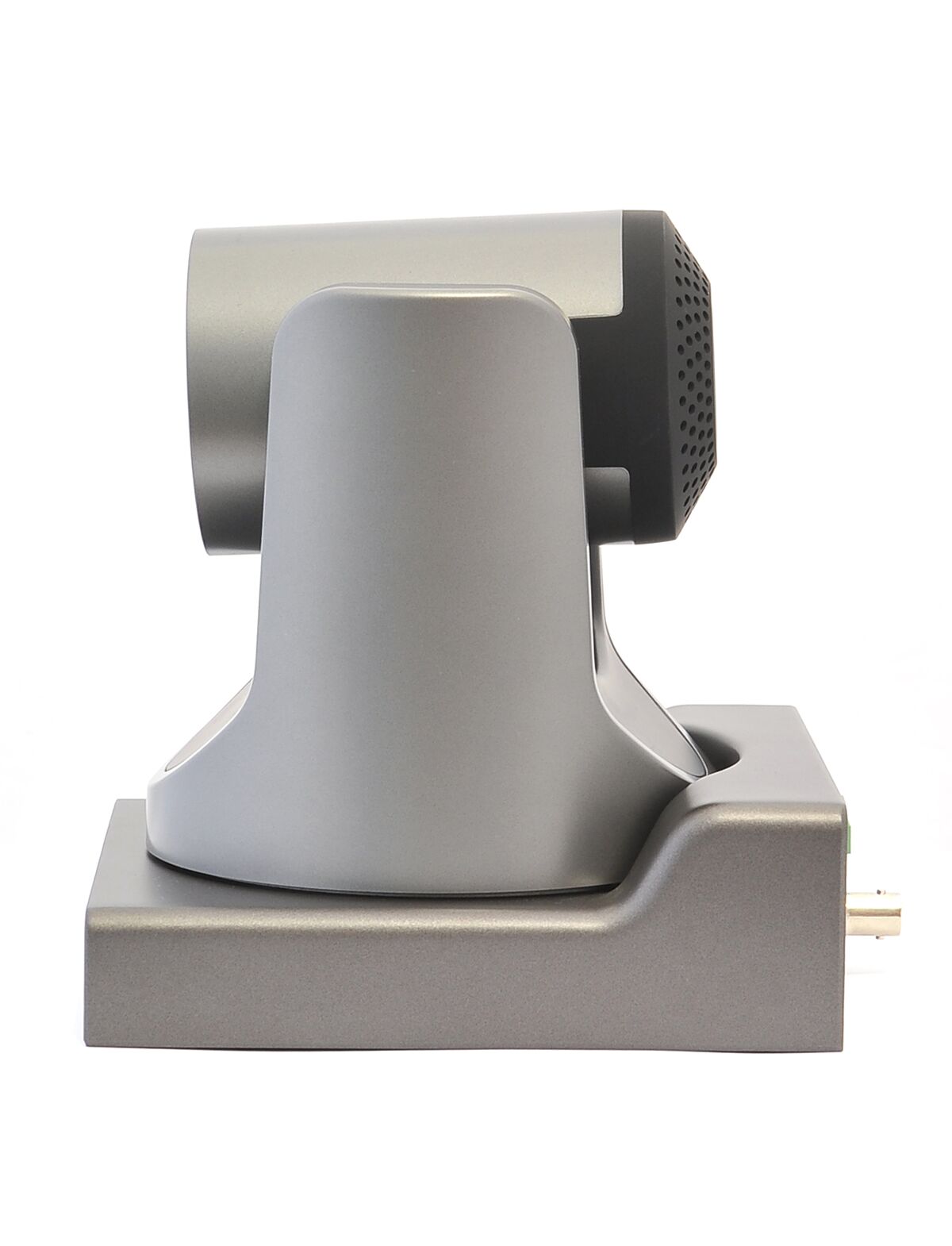

V63CL FHD Video Conference Camera 30x Optical + 8x Digital Zoom 1/2.7'', CMOS
Please sign in so that we can notify you about a reply
Features
- 1080P Full HD
- Multiple Interfaces
- Local Storage
- AAC Audio Encoding
- 30x Optical + 8x Digital Zoom
Brand:
VHD
Specifications
Product Type:
Video Conference Camera
Lens Type:
30xf4.42mm, 132.6mm, f1.8, f2.8
Audio Compression Type:
AAC
Sensor Type:
1/2.8in CMOS Effective Pixel: 2.07M
Special Features:
1080P Full HD, Multiple Interfaces, Local Storage, AAC Audio Encoding, 30x Optical + 8x Digital Zoom
Applications:
Big Meeting Rooms, Middle Meeting Room
Performance
Video System Type:
1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25
Video Signal-to-Noise Ratio:
≥55dB
Scanning Mode:
Progressive
Inputs and Ports
Audio Interface Type:
1-Ch 3.5mm Audio Interface, Line In
SD Output Type:
1xCVBS 3.5mm Mini Jack, 1Vp-p, 75Ω
HD Output Type:
1xHDMI Version 1.3, 1x3G-SDI BNC Type, 800mVp-p, 75Ω, Along to SMPTE 424M Standard
USB Type:
1xUSB2.0 Type a Female Jack
Communication Interface:
1xRS-232 in 8-Pin Min DIN, Max Distance 30m, Protocol VISCA/Pelco-D/Pelco-P, 1xRS-232 Out 8-Pin Min DIN, Max Distance 30m, Protocol VISCA Network Use Only, 1xRS-485 2-Pin Phoenix Port, Max Distance 1200m, Protocol VISCA/Pelco-D/Pelco-P
Interface Type:
1xRJ5 10M/100M Ethernet Interface
Power
Input Voltage:
12V DC
Power Jack Type:
JEITA Type (DC IN 12V)
Dimensions
Length:
15.2cm
Width:
14.6cm
