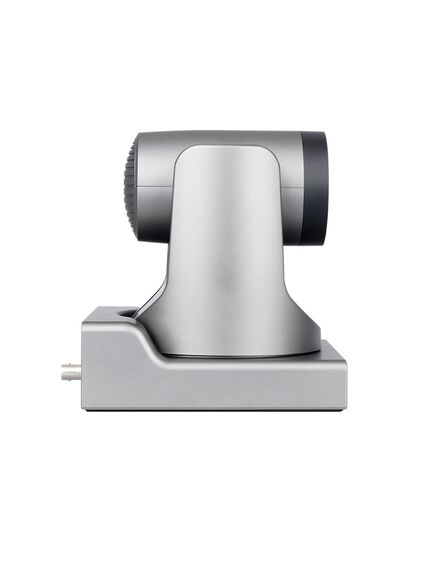

VX60AL 4K30P Professional PTZ Camera
Please sign in so that we can notify you about a reply
4K30P Professional PTZ Camera
NDI®|HX2
20x Optical Zoom
Brand:
VHD
Specifications
Product Type:
Video Conference Camera
Lens Type:
20xf6.25mm,125mm, f1.58, f3.95
Video Stream Type:
First Stream, Second Stream
Horizontal Angle of View:
60 to 3.5°
Tilt Speed Range:
1.7 to 69.9°/s
Number of Preset:
255
Horizontal Rotation Range:
±170°
Minimal Illumination:
0.5Lux@(F1.8, AGC ON)
Vertical Angle of View:
35.7 to 2.0°
Audio Compression Type:
AAC, G711A
Sensor Type:
1/1.8in CMOS Effectivepixels: 8.42 Megapixels
Special Features:
Multiple Interfaces, 20x Optical Zoom + 60° Wide-angle Lens, HDMI1.4b, Low Illumination, Remote Control, Local Storage, Low Power Sleep, Smart Exposure
Power Rating:
13W
Support Protocols:
HX2, SRT, TCP/IP, HTTP, RTSP, RTMP/RTMPS, Onvif, DHCP, Multicast, GB/T28181
Applications:
2D and 3D Noise Reduction Algorithm Greatly Reduces Image Noise, Even Under the Condition of Ultra-Low Illumination, it Still Keep the Picture Clean and Clear, the SNR of Image is as High as 55dB
Operating Temperature Range:
-10 to +40°C
Performance
Video System Type:
HDMI, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.9, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 750p/50, 3G-SDI:1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1
Main Stream Resolution:
720x576pixels, 720x480pixels, 320x240pixels
Bit Rate Type:
Fixed Rate, Variable Rate
Video Bit Rate:
First Stream 32 to 51200, Second Stream 32 to 20480Kbps
Video Signal-to-Noise Ratio:
≥55dB
Digital Noise Reduction:
3D Digital Noise Reduction
Shutter Time:
1/30 to 1/10000sec
Frame Rate:
1 to 50fps (50Hz), 1 to 60fps (60Hz)
Video Compression Type:
H.264/MJPEG /H.265
Scanning Mode:
Progressive
Audio Bit Rate:
96Kbps, 128Kbps
Pan Speed Range:
1.7 to 100°/s
Preset Accuracy:
0.1°
Inputs and Ports
Audio Interface Type:
1xLine In 3.5mm Jack, 1xLine Out 3.5mm Jack
HD Output Type:
1xHDMI Version 1.4b, 1x3G-SDI BNC, 800mVp-p, 75Ω, SMPTE 424M Standard
USB Type:
1xUSB 2.0, Type-A
Communication Interface:
1xRS-485 2-Pin Phoenix Port, Max Distance 1200m, Protocol VISCA/Pelco-D/Pelco-P, 1xRS-232 IN 8-Pin Mini DIN, Max Distance 30m, Protocol VISCA/Pelco-D/Pelco-P, 1xRS-232 OUT 8-Pin Mini DIN, Max Distance 30m, Protocol VISCA Only
Interface Type:
1xRJ5 10M/100M/1000M Adaptive Ethernet Port
Power
Input Voltage:
12V DC
Power Jack Type:
JEITA Type (DC IN 12V)
Current Rating:
1.5A
Dimensions
Length:
16.9cm
Width:
14.2cm
Depth:
17.5cm
