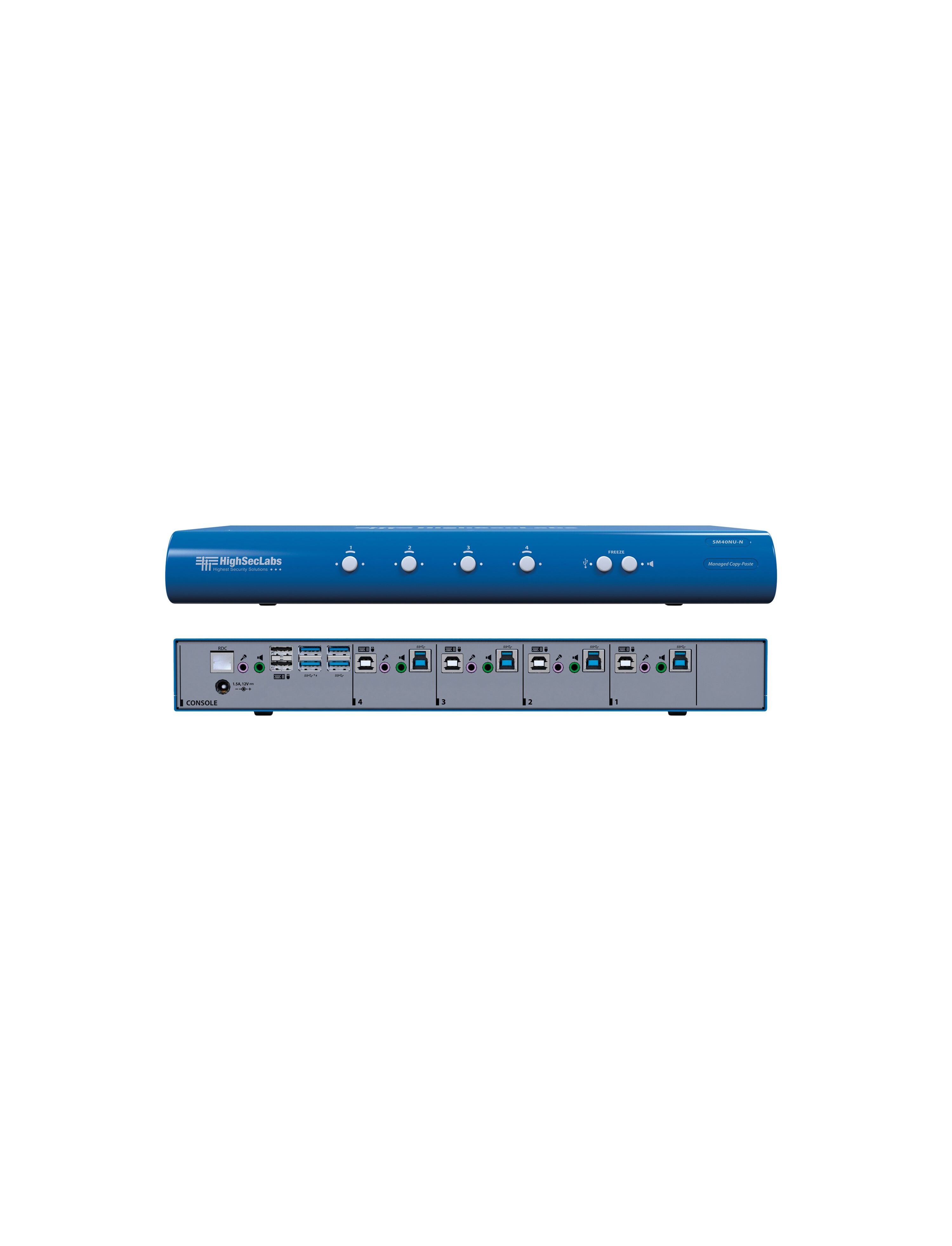

SM40NU-N High Sec Labs 4-Port KM Switch, 4 Port
Please sign in so that we can notify you about a reply
SM40NU−N is a 4−port KM switch. it enables users to share peripherals − keyboard, mouse, audio and USB − between four different networks/computers. it also enables assigning a USB port to a specific computer while switching other peripherals, such as when a USB smart card reader must remain mapped to a certain computer.
Features
- Multi Display Support — Enables switching keyboard and mouse control between computers, when each computer is connected to up to 4 displays (either extended or duplicated).
- Copy & Paste — Transfer text and files between all the computers that are connected to the KVM switch (no network connection is needed between parties). Use standard copy and paste keyboard key combinations (CTRL+C / CTRL+V) or context–menu commands.
- Super Speed USB 3.0 Ports — Transfer data and files between peripherals and computers USB 3.0 Super Speed rates through the KVM switch USB 3.0 ports.
- Express USB Charging — Rapidly charge USB devices connected to the high–power USB ports.
Brand:
Kramer
Part number:
22-00004090
Specifications
Product Type:
High Sec Labs 4-Port kM Switch
USB Keyboard/Mouse Emulation (Yes/No):
Yes
Special Features:
Multi Display Support, Copy & Paste, Super Speed USB 3.0 Ports, Express USB Charging
OS Compatibility:
Windows, Linux, Mac
Maximum Storage Temperature:
+60°C
Maximum Operating Temperature:
+40°C
Applications:
Government Agencies, Military, Financial Institution
Minimum Storage Temperature:
-20°C
Humidity:
0 to 80%
Minimum Operating Temperature:
0°C
Product Life-Cycle:
10yrs
Inputs and Ports
Number of Ports:
4
Console Port Type:
2xUSB-A Connector for Keyboard and Mouse, 4xUSB-A 3.0 Connector for USB Devices, 1x3.5mm Mini Jack for Unbalanced Stereo Audio, 1x3.5mm Mini Jack for Microphone, 1xRJ45 Connector for Control
Computer Port Type:
4xUSB-B Connectors for Keyboard and Mouse, 4xUSB-B 3.0 Connectors for USB Devices, 4 3.5mm Mini Jacks for Unbalanced Stereo Audio, 4 3.5mm Mini Jack for Microphone
Power
AC Input Voltage Rating:
100 to 240V AC
DC Input Voltage Rating:
10V DC
Standards
Standards Met:
CE, RCM Certified, FCC Compliant, VCCI Certification, TUV Certification
Dimensions
Width:
34.2cm
Depth:
14.8cm
Height:
4.2cm
Weight:
1.3kg
