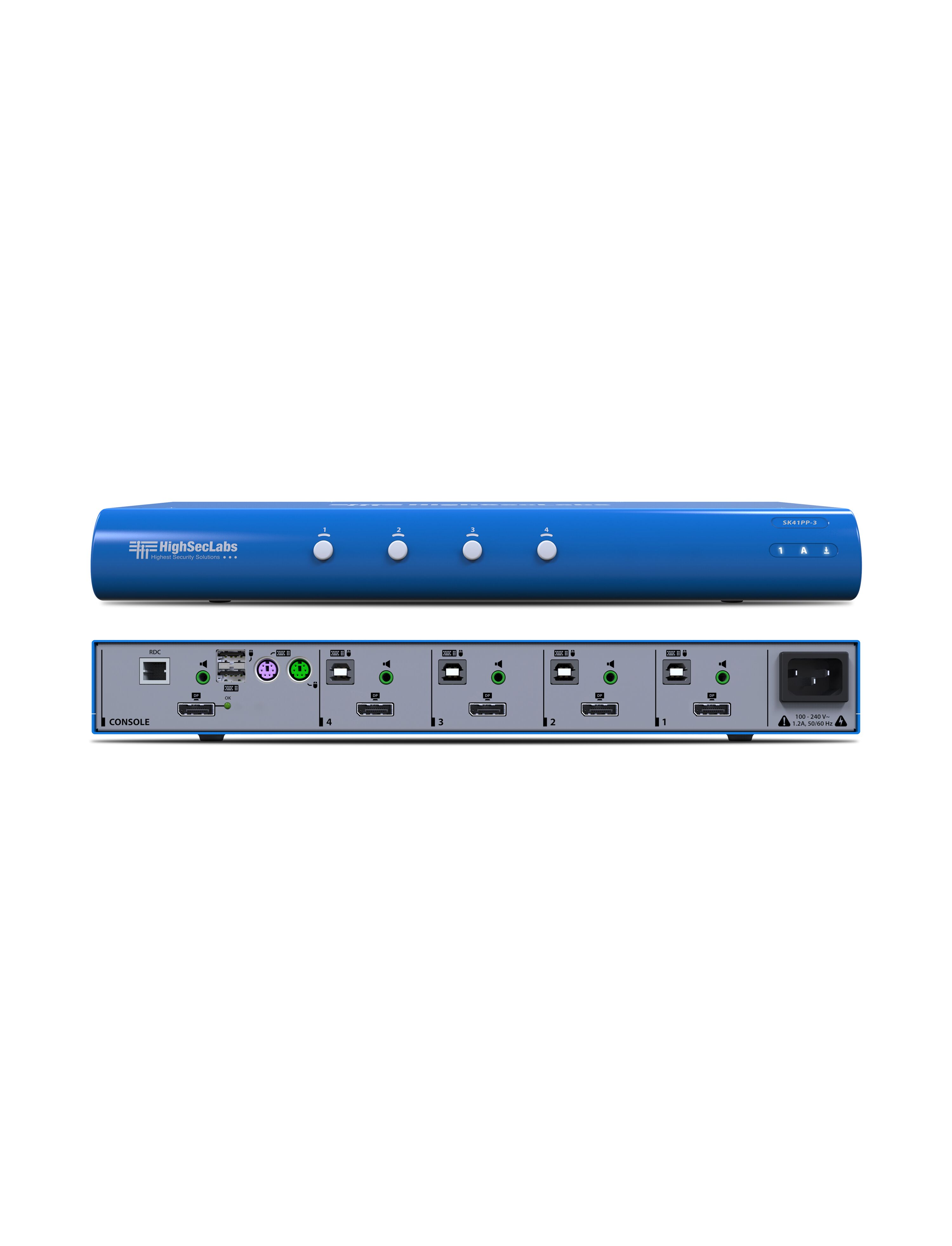

SK41PP-3 Display Port KVM Switch, 4 Port
Please sign in so that we can notify you about a reply
SK41PP−3 is a secure 4−port, small−form−factor DisplayPort KVM switch. It allows users to share peripherals − keyboard, mouse and monitor − between two different security−level networks/computers. It provides the highest possible isolation between two connected computers and is NIAP Common Criteria Protection Profile version 3.0 (PP3.0) certified.
Features
- Small Form Factor — Occupies minimum desktop space.
- DisplayPort Video Support — DisplayPort 1.2 with resolutions up to 3840×2160 30bpp @60Hz, 17.28Gbps on 4–lane link; four computers connected to a single display.
- AUX Channel Protection — Patented AUX channel firewall technology prevents leakage, signaling attacks prevented by design, fully functional EDID.
- Highest Security by Design — NIAP Common Criteria PP3.0 for Peripheral Sharing Switch (PSS) devices.
- Hardware–Based Peripheral Isolation — No dependency on firmware or software, all firmware on ROM, no keyboard buffering or memory.
- Unidirectional Optical Data Diodes — Assures USB peripheral isolation, data flows from devices to host only.
- Peripheral Security — Full USB device filtering to assure support for keyboard and mouse only.
- Active Anti Tampering System — Always–on with 10 years battery, holographic tampering evident labels.
Brand:
Kramer
Part number:
22-00023990
Specifications
Product Type:
Display Port KVM Switch
Special Features:
Highest Security By Design
Supported Operating Systems:
Windows, Linux, Mac
Maximum Operating Temperature:
+40°C
Applications:
High-Security Organizations, Government Agencies, Military, Financial Institutions, Any Other Organization that Handles Sensitive and Confidential Information
Humidity:
0 to 80%
Minimum Operating Temperature:
0°C
Product Life-Cycle:
10yrs
Performance
Maximum Resolution:
4K30 UHD: 3840X2160pixels@30Hz
Inputs and Ports
Number of Ports:
4
Console Port Type:
1xDisplay Port Connector, 2xUSB-A Connector for Keyboard and Mouse, 1x3.5mm Mini Jack for Unbalanced Stereo Audio, 1x3.5mm Mini Jack Connector for Control
Computer Port Type:
USB Type B (Mouse & Keyboard), USB Type B, 3.5mm Mini Jack
Power
DC Input Voltage Rating:
12V
Standards
Standards Met:
CE, RCM Certified, FCC Compliant, VCCI Certification, TUV Certification
Dimensions
Width:
34.2cm
Height:
4.2cm
Weight:
1.6kg
