CDPS-CS6 IP to Relay, IR & RS232 Controller
Please sign in so that we can notify you about a reply
This Control System Center is Ideal for a user Who Has a Wide Variety of Devices That Need to Be Controlled. it Comes With Eight External Trigger Connections Which Directly activate 8 (of 16 total) user Defined Macro Events Stored Within the Unit. all 16 Macros are ailable to Be activated Via the Webgui, or By Telnet. Those user Defined Macros Can Send Commands to Remote Devices Via Ethernet, IR (×4), Relay Trigger (×4), or RS-232/422/485 (×1) allowing for the Control of a Large array of Devices at the Push of a Button. an Integrated IR Code Learning Function is also ailable, allowing the user to Store and Re-Transmit the IR Codes Sent By Nearly any Standard IR Remote. Comprehensive user Control Interfaces are ailable Including Webgui, Telnet and Console (RS-232 In). Last But not Least, This Unit Supports Power over Ethernet (PoE) allowing it to Be Powered Directly From a Standard Poe Network Switch, Without the Need for an External Power adapter, allowing for Incredible Installation Flexibility.
Features
- 8 Trigger Inputs Linked Directly to 8 User Macros allowing for Instant Control activation
- 4 Relay Trigger Outputs to Control Devices Such as Projector Screens, Lighting, Etc.
- 4 IR Outputs to Control Devices Such as Tvs, Media Players, Etc.
- Integrated Ir Code Learning Functionality
- multiple User Control Interfaces Including WebGui, Telnet and RS-232
- Simple Configuration Of Macros, Triggers and Relay Settings Via the WebGui
- Poe (Power Over Ethernet) Support
- Firmware Can Easily Be Updated In the Field Via USB
- Need to Have 1x Serial Port , Can Use Serial Transmission (RS-232/RS-422/ Rs-485) to Send Out Commands to Compatible Devices
Brand:
Cypress Technology
Specifications
Product Type:
Control System Centre
Special Features:
8 Trigger Inputs Linked Directly to 8 User Macros Allowing for Instant Control Activation, 4 Relay Trigger Outputs to Control Devices Such as Projector Screens, Lighting, Etc., 4 IR Outputs to Control Devices Such as Tvs, Media Players, Etc., Integrated I
IR Frequency:
30 to 50kHz
Power Rating:
3.63W
Maximum Operating Temperature:
+40°C
Colour:
Black
Chassis Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Storage Temperature Range:
-20 to +60°C
Performance
Baud Rate:
Up to 115200bps
Inputs and Ports
Input Port Type:

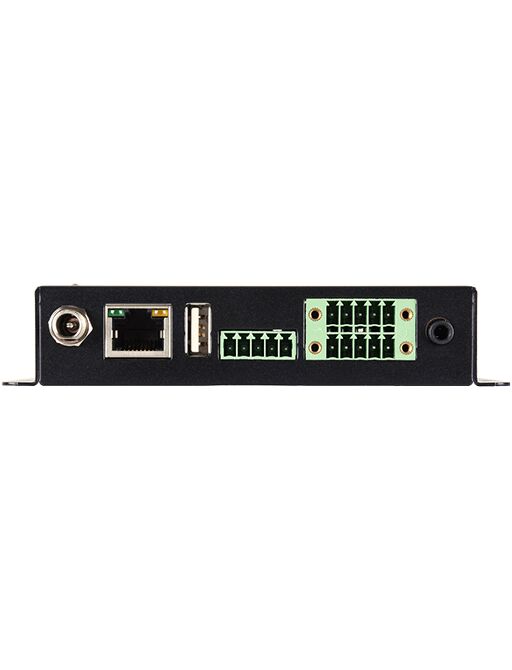

1xIR Learner/Extender (3.5mm), 8xTrigger (10-Pin Terminal Block)
Output Port Type:
4xIR Blaster (3.5mm), 4xRelay (2-Pin Terminal Block) 1xSerial (5-Pin Terminal Block)
Interface Type:
WebGUI, Telnet and RS-232
Power
Voltage Rating:
5V DC
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Standards
Standards Met:
CE, FCC Compliant, UL Listed
Dimensions
Width:
12.8cm
Depth:
11.8cm
Height:
11.8cm
Weight:
400g
