FC-18 4K HDR Display ON/OFF Controller
Please sign in so that we can notify you about a reply

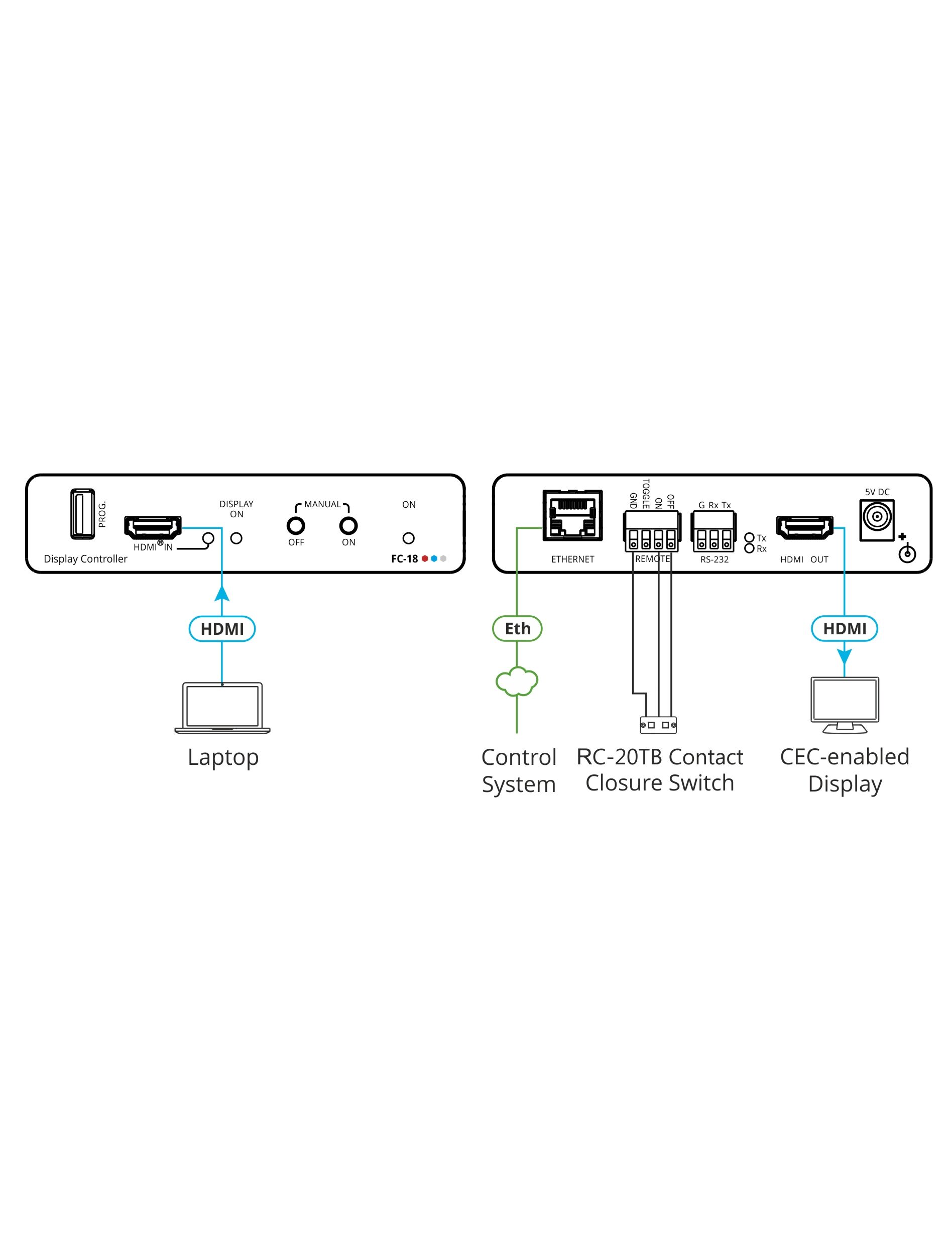

FC−18 is a display ON/OFF controller for 4K@60Hz (4:4:4) HDR HDMI signals. It accepts and outputs an HDMI signal after reclocking and equalizing. On detection of the onset of an input signal FC−18 sends an ON command to the display or projector and on detection of the loss of the input signal FC−18 sends an OFF command. FC−18 can also be used to control a display device manually via front panel buttons, Ethernet or contact closure switches.
Features
- Save On Power Costs-Shut Down Display Devices Automatically When Not In Use.
- Facilitate Meeting Setups-Just Plug In The AV Source And The Display Screen Or Projector Automatically Turn On. No More Searching For The Power Button.
- High-Performance Hdmi Acceptor- Supports 4K @ 60hz (4:4:4) Hdr10, HDCP 2.2/1.4 Signals At 18g (6G Per Channel) Data Rate, Cec (by–pass), Dolby Vision (by–pass) As Specified In Hdmi 2.0.
- Variety Of Automatic Control Formats-Commands Are Sent To The Display Device Via Cec, Rs–232, Or Ethernet.
- Variety Of Manual Control Formats-Manually Turn The Display Device On And Off Via Front Panel Button And Rs–232/Cec Commands, Ethernet, Contact Closure Switches.
- Data Tunneling-Supports Data Tunneling Between The Rs–232 Port And The Ethernet Ports.
- HDCP Compliance-HDCP 1.4 And 2.2.
- Kramer Equalization & Re-Klocking™ Technology-Rebuilds The Digital Signal Integrity To Travel Longer Distances.
- Selectable Edidoptions-Default (internal), External (sink) Or User–Defined.
- Firmware Upgrading Via Usb Port.
- Easy Installation-Compact Digitools® Fan–Less Enclosure For Surface Mounting Or Side-By-Side Mounting Of 3 Units In A 1u Rack Space With The Recommended Rack Adapter.
Brand:
Kramer
Part number:
30-011890
Specifications
Product Type:
4K HDR Display ON/OFF Controller
Special Features:
Save on Power Costs-Shut Down Display Devices Automatically When Notin Use, Facilitate Meeting Setups-Just Plugin the AV Source and the Display Screen Or Projector Automatically Turn On. No More Searching for the Power Button, High-Performance HDMI Accept
Maximum Operating Temperature:
+40°C
Colour:
Black
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Adapter, Bracket Set
Storage Temperature Range:
-40 to +70°C
Performance
Maximum Input Resolution:
4K@60Hz (4:4:4)
Inputs and Ports
Input Port Type:
HDMI
Output Port Type:
1xHDMI: on a Female HDMI Connector
Power
Voltage Rating:
5V DC
Current Rating:
580mA
Dimensions
Width:
12cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.3kg
No reviews found
