CLUX-1HLR HDMI Video Wall Rotation Processor
Please sign in so that we can notify you about a reply

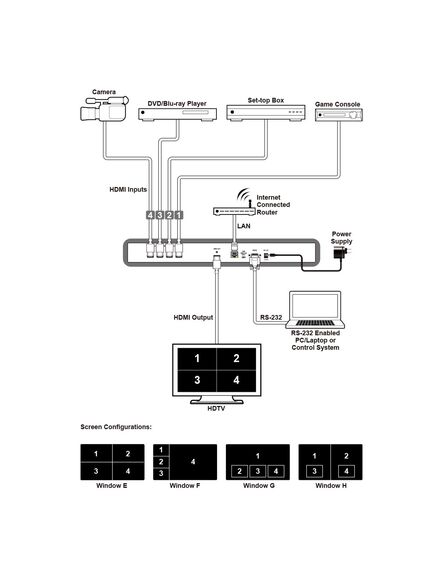

This HDMI Multiviewer is Capable of Scaling Up to 2 Sources and Displaying Both Simultaneously On a Single HDMI Output Within the IR Own Windows. This is the Ideal Solution for Monitoring multiple Sources Simultaneously for use In Control Rooms, or for Flexible Display Presentations In Conference Rooms or Classrooms. Both Inputs Support Resolutions Up to 1920×1200p @ 60Hz and Lpcm audio With Up to 8 Channels at 192KHz. the Multi-Window Output is Sent to a Single HDMI Output at Scaled Resolutions Up to 1920×1200 @ 60Hz along With the Selected audio Source. the user Can use theIR Pc to Generate Images or Text to Be overlaid On top of a Live HDMI Input In Real Time. This Unit Can Be Controlled Easily By use of the Front Panel Controls (with Osd) as Well as By Webgui, Telnet, RS-232, IR, and 8 DIRect Trigger Inputs.
Features
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
- Only 1 to 2 frames of video latency
- Supports horizontal/vertical video warping with zooming in/out and 360 degree display rotation in 1° increments (Rotation Mode)
- Video mirror, flip, and freeze (Scaler Mode)
- Wide variety of video adjustments, including: contrast, brightness, hue, sharpness, aspect ratio
- Custom EDID management
- Basic control of the unit is provided by front panel controls with an informational OSD
- Complete control of the unit is accomplished by use of Telnet, RS-232 or the Video Wall PC software
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Video Wall Rotation Processor
Special Features:
Inputs and output support HD resolutions Up to 1080p60 and PC resolutions Up to WUXGA (RB), Supports audio pass-through of 7.1 channel LPCM sources via HDMI, Balanced analog stereo audio extraction support via 5-Pin terminal block (LPCM 2.0 sources only),
Power Rating:
5.9W
Maximum Operating Temperature:
+40°C
Colour:
Black
Chassis Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Storage Temperature Range:
-20 to 60°C
Performance
Audio Sample Rate:
Up to 1080p@60Hz with LPCM
Inputs and Ports
Input Port Type:
1xHDMI-Type A
Output Port Type:
1xHDMI-Type A
I/O Interface Type:
1xRS-232 (DE-9), 1xLAN (RJ45)
Power
Voltage Rating:
5V
Voltage Rating:
5V
Standards
Standards Met:
CE, FCC Compliant, UL Listed
Dimensions
Width:
23.15cm
Depth:
11.7cm
Height:
2.5cm
Weight:
652g
