CH-1527TXWPUS HDMI over Cat5e/6/7 Wall-Plate Extender with LAN/IR/RS-232/PoH
Please sign in so that we can notify you about a reply
This HDMI over Single Cat.5e/6/7 Transmitter and Receiver Set Can Send Uncompressed, High Resolution, Video/audio over a Single Cable Up to a Distance of 100 Meters. In addition to the audio and Video Capabilities, it Can also Bi Directionally Transmit RS-232 and IR Control Signals as Well as Extending Your Local Lan to the Display Device us 2 Gang Design allowing Install On ac Outlet. the Receiver (PD) is Powered By the 48v Poh (Power over Ethernet) Function of the Transmitter (PSE), allowing for Greater Flexibility In Installations.
Features
- HDMI With 3D & 4K Support. DVI Signal Compliant
- Supports CEC Bypass Simultaneous Transmission Of Uncompressed Video, audio and Data Over a Single 100m/328ft Cat.5e/6/7 Cable
- 5play™ Convergence: HDMI, LAN, PoH & Control (IR & Rs-2232)
- Supports Resolutions Up to 4K @ 50/60hz (YUV 4:2:0)
- Supports Standard 48v PoH From Transmitter (PSE) to Receiver (PD
- Supports HDMI I/O Cable Distance Up to 5m at 4K @ 50/60hz (YUV 4:2:0
- Installation Friendly Wall/Table Mount Case Design
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over Cat.5e/6/7 Wall-Plate Extender with LAN/ IR/RS-232/PoH
Special Features:
HDMI with 3D & 4K Support. DVI Signal Compliant, Supports CEC Bypass Simultaneous Transmission Of Uncompressed Video, Audio and Data Over a Single 100m/328ft Cat.5e/6/7 Cable, 5play™ Convergence: HDMI, LAN, Poh & Control (IR & Rs-2232), Supports Resolut
Power Rating:
12.87W
Maximum Operating Temperature:
+40°C
Colour:
White
Chassis Material:
Metal
Applications:
High Resolution, Video/Audio Over a Single Cable Up to a Distance Of 100 Meters
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Storage Temperature Range:
-20 to +60°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Maximum Input Resolution:
4096x2160pixels@60Hz YUV 4:2:0
Maximum Output Resolution:
4096x2160pixels@60Hz YUV 4:2:0
Output Signal Type:
4K@60Hz YUV 4:2:0
Inputs and Ports
Input Port Type:
1xHDMI -Type A, 1xIR (3.5mm), 1xRS-232 (DE-9), 1xLAN (RJ45)
Output Port Type:

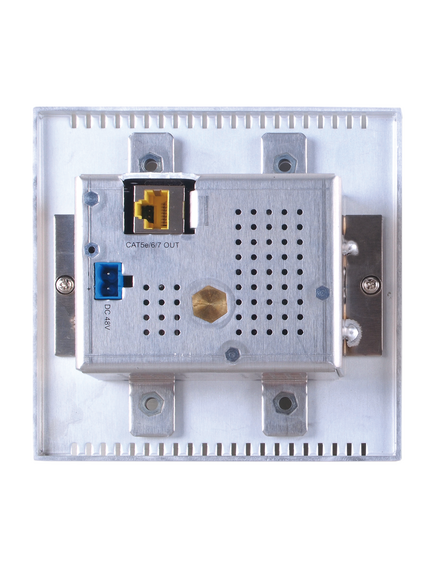

1xHDBaseT (RJ45), 1xIR Out(3.5mm)
I/O Interface Type:
RS-232
Input Signal Type:
4K@60Hz YUV 4:2:0
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Standards
Standards Met:
CE, FCC Compliant, UL Listed
Dimensions
Length:
12.7cm
Width:
12.5cm
Depth:
4.5cm
Weight:
206g
