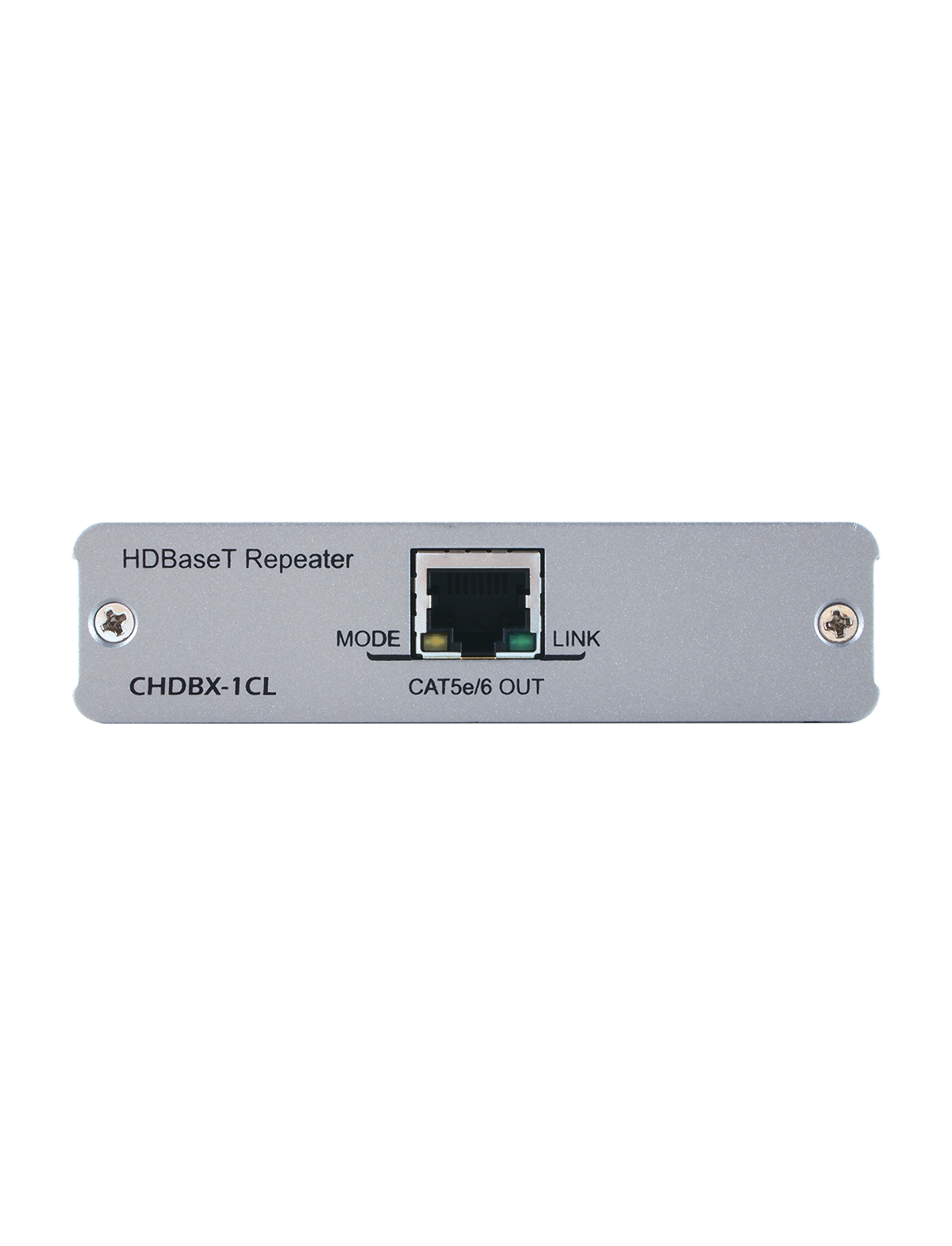

CHDBX-1CL HDBaseT™ Lite Repeater
Please sign in so that we can notify you about a reply
This HDBaset™ Repeater allows HDBaset Lite Systems to Be Extended and Cascaded. The Model Supports The Highest Quality of Uncompressed High-Definition HD Video Up to 4K×2K (Ultra HD), Up to 8 Channels of Uncompressed Multi-Channel audio, RS-232 and IR Control Systems, Complete HDBaset 3play Convergence With Just a Simple Connection over a Single Cat5e/6/7 Cable.
Features
- HDMI, DVI and HDCP Compliant
- Supports 3d Over HDMI and 4K×2K (Ultra HD) Resolution
- Supports Cec Bypass
- Doubles Up the Distance Of HDbaset Transmission Between HDbaset Lite Transmitter and Receiver, With a Single Repeater. the Transmission Distance Can Be added Up 60 Meters for Every additional Repeaters Up to 3 Tiers
- Uncompressed Video Support Up to 1080p @ 60hz/36-Bit and 4K×2K (Ultra HD)
- audio Support Up to Lpcm 7.1ch, Dolby TrueHD and Dts-HD Master audio
- 3play Convergence: Full Uncompressed HD Video, audio and Controls (IR and RS-232) Over a Single Cat5e/6/7 Cable
- Installation Friendly
Brand:
Cypress Technology
Specifications
Product Type:
HDBaseT Lite Repeater
Power Rating:
16.2W
Maximum Operating Temperature:
+40°C
Colour:
Black
Chassis Material:
Metal
Applications:
Hdbaset Lite Signal Extension Up to 60m (up to 120m with Additional Optional Repeater Unit), 180m (1080pixels) in Total (cascaded 3 Times), Extending a Zone's Output Range
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Storage Temperature Range:
-20 to +60°C
Inputs and Ports
Input Port Type:
1xCAT5e/6/7
Output Port Type:
1xCAT5e/6/7
Standards
Standards Met:
US/EU Standard, CE, FCC Compliant, UL Certified
Dimensions
Width:
10.2cm
Depth:
14.5cm
Height:
2.5cm
Weight:
324g
