CM-388M HDMI Repeater with Video Outputs
Please sign in so that we can notify you about a reply
The 8×8 HDMI Matrix Supports The Transmission of Video Signal (up to 1080p Full HD/1920×1200 @ 60 Hz) With Multichannel Digital audio From Up to Eight High Definition Sources to Up to Eight HDMI Outputs, and allowing any Source to Be Independently Displayed On any Monitor. also, The Unit Can Be Controlled Via IR, RS-232, Telnet, Web Gui or The Front Panel Buttons.
Features
- Converts Video Signal From HDMI Source To NTSC or PAL Signal (selectable)
- Converts Digital Audio From HDMI Source To Analog Stereo Audio
- Accepts A Wide Range Of HDTV Input Resolutions, From 480i To 1080p@60 Hz And Pc From VGA @ 60 Hz To Wuxga @ 60 Hz (RB)
- Supports Coaxial Input Audio Sample Rate 44.1khz, 48khz And 96khz
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Repeat with Video Output
Special Features:
Converts Video Signal From HDMI Source to NTSC or PAL Signal (selectable), Converts Digital Audio From HDMI Source to Analog Stereo Audio, Accepts a Wide Range Of HDTV Input Resolutions, From 480i to 1080pixels@60Hz and Pc From VGA@60Hz to Wuxga@60Hz (RB)
Power Rating:
5.5W
Maximum Operating Temperature:
+40°C
Colour:
Black
Chassis Material:
Aluminium
Applications:
HDMI to Composite Video Or S-Video Signal Conversion, HDMI to Ntsc/Pal System Conversion, HDMI to Sd Resolution for Recording/Monitoring
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Storage Temperature Range:
-20 to +60°C
Performance
HDMI Compliance Type:
1.2 (DVI 1.0 )
HDCP Compliance Type:
1.4
Maximum Input Resolution:
4096x2160pixels@60Hz YUV 4:4:4
Maximum Output Resolution:
4096x2160pixels@60Hz YUV 4:4:4, 4096x2160pixels@60Hz YUV 4:4:4
Output Signal Type:
CV/SV : NTSC, NTSC4, PAL, PAL-M, PAL-N & SECAM, HDMI : 1080pixels@60Hz 12bits
Inputs and Ports
Input Port Type:
1xHDMI, 1 Coaxial

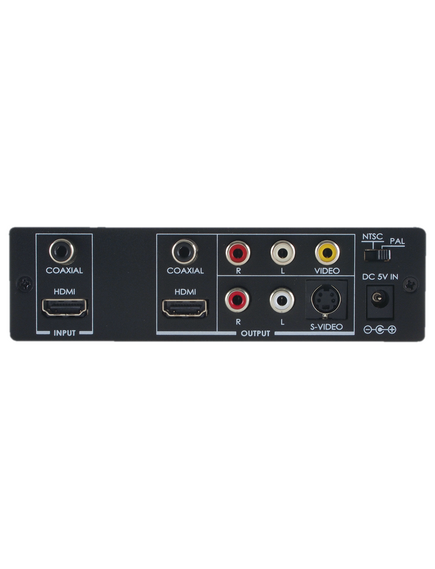

Output Port Type:
1xHDMI, 1 Coaxial, 1 Composite Video, 1 S-Video, 2 L/R
Input Signal Type:
1080pixels@60Hz 12bits
Standards
Standards Met:
US/EU Standard, CE, FCC Compliant, UL Certified
Dimensions
Width:
14.1cm
Depth:
12.7cm
Height:
3.8cm
Weight:
510g
