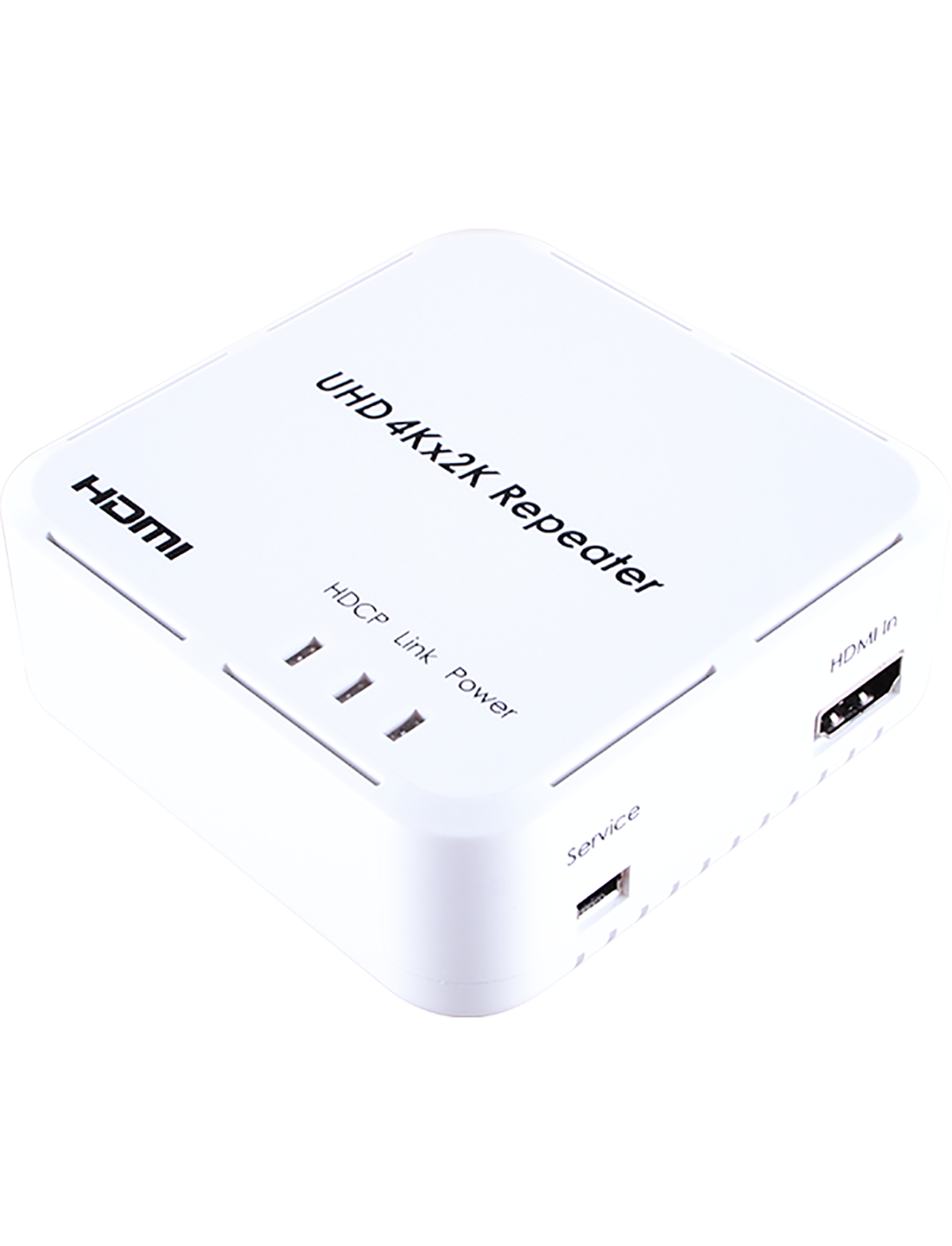

CPRO-11SR HDMI 4Kx2K Repeater
Please sign in so that we can notify you about a reply
The HDMI™ 4Kx2K Repeater is the Most advanced Solution for HDMI to HDMI Signal Repeater. it Does amplifies Signal and Equalization to Provide High Performance I/O of audio and Video Through HDMI Cable for Distance Up to 15 Meters at 1080p @ 60Hz at 8-Bit Resolution.
Features
- Compliant With HDMI, HDCP 1.2 and Dvi 1.0
- Supports HDMI audio Sampling Rate Up To 192 Khz
- HDMI Supports High-Bit-Rate (HBR) audio
- Maximum Input and Output HDMI Cable Length Can Run Up To 15 Meters at 1080p 8-Bit Resolution Or 10 Meters ate 1080p 12-Bit Resolution
- Supports Equalize and Recover Incoming Tmds Data Before Retransmitting them With Optimal Quality Regarding Of the Incoming Signal Quality
- Full HDCP Compliant
- Supports Cec Bypass Function
- Supports Dvi Conversion With HDMI To Dvi adaptor
- Supports 4Kx2K Resolution and 3d Signal
Note: When displaying HDMI 4Kx2K signal, equivalent source signal, output display and HDMI cables are required in order to secure the best image display.
Brand:
Cypress Technology
Specifications
Product Type:
HDMI 4Kx2K Repeater
Service Port Type:
1xMini USB
Special Features:
Compliant with HDMI, HDCP 1.2And DVI 1.0, Supports HDMI audio sampling rate Up to 192kHz, HDMI supports highbits-rate (HBR) audio, Maximum input and output HDMI cable length can run Up to 15m at 1080p 8bits resolution or 10m ate 1080p 12bits resolution, S
Power Rating:
2.5W
Maximum Operating Temperature:
+40°C
Colour:
White
Chassis Material:
Plastic
Applications:
Extending 4Kx2K Audio and Video Signal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Storage Temperature Range:
-20 to +60°C
Performance
HDCP Compliance Type:
1.2
Inputs and Ports
Input Port Type:
1xHDMI, 1xMini-USB
Output Port Type:
1xHDMI
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±6kV (Contact Discharge)
Standards
Standards Met:
US/EU Standard, CE|FCC Compliant|UL Listed
Dimensions
Width:
8.5cm
Depth:
8.7cm
Height:
3.4cm
Weight:
102g
