AV-REC200 Recorder and Encoder, RJ45/RS232 I/O Interface
Please sign in so that we can notify you about a reply
The Avonic AV-REC200 is the ideal standalone USB/ SD Card recorder and web/streaming device. Users can simply connect an HDMI or SD/HD-SDI input and in a few simple steps they will be streaming and/or recording. With support for UDP/HLS/RTMP/RTSP live output and USB/SD card recording the REC200 it enables corporate streaming, live streaming to various platforms and live high bitrate full HD 1080P60 recording. A simple to use web Interface and IP control enable ease of use and full integration with 3rd party control systems.
Features- High Definition input resolutions up to 1080p60
- Live streaming to various platforms including Facebook Live and YouTube
- H.264, H.265 encoding
- Front panel screen with status, setup and control capabilities
- Live Meeting Broadcasts
- Logo overlay
- Full ip control via web interface
- H.264/ H.265 video coding
- Autonomous FTP uploading of finished recordings
Brand:
Avonic
Specifications
Product Type:
Recorder and Encoder
Input Video Format:
HDMI, 3G-SDI
Output Video Format Type:
HDMI
Power Rating:
9W
Operating Humidity:
20 to 90%
Operating Temperature Range:
10 to 40°C
Storage Temperature Range:
-20 to 60°C
Inputs and Ports
Number of Video Input Port:
2
Number of Video Output Port Type:
1
Audio Input Type:
3.5mm Audio Jack
Video Input Type:
1 HDMI, 1 3G-SDI Level A
Number of Audio Input Port:
1

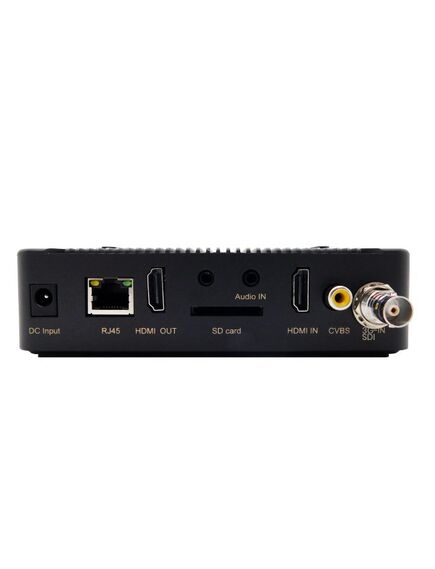

I/O Interface Type:
RJ45, RS-232
Standards
Standards Met:
CE, FCC
Dimensions
Width:
24.5cm
Depth:
6.2cm
Height:
17.5cm
Weight:
0.3kg
Shipping Weight:
0.7kg
