482XL Balanced/Unbalanced Stereo Audio Transcoder
Please sign in so that we can notify you about a reply

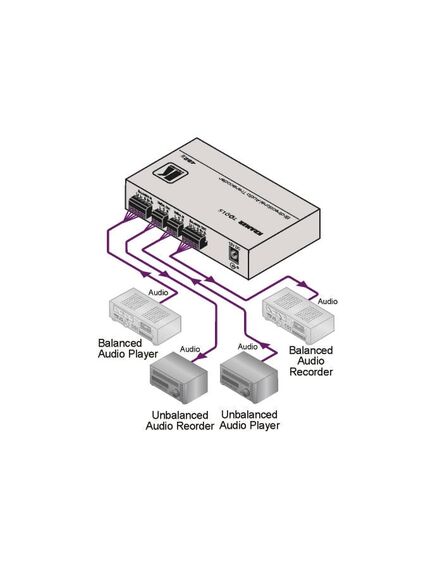

The 482xl is a high-performance audio transcoder for balanced and unbalanced stereo audio signals. It simultaneously converts balanced stereo signals to unbalanced stereo audio and unbalanced stereo audio signals to balanced stereo audio.
Features
- Bidirectional Format Conversion — Balanced stereo audio to unbalanced stereo audio and unbalanced stereo audio to balanced stereo audio simultaneously.
- Connectors — Terminal blocks (balanced & unbalanced).
- Level (Gain) Control — Independent L & R adjustment while transcoding for both balanced to unbalanced conversion and unbalanced to balanced conversion.
- S/N Ratio — 95dB balanced to unbalanced, 87dB unbalanced to balanced, unweighted.
- Compact Kramer TOOLS™ — 3 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
90-715990
Specifications
Product Type:
Balanced/Unbalanced Stereo Audio Transcoder
Coupling Type:
Balanced to Unbalanced, Unbalanced to Balanced
Control Type:
-57dB to +6dB (Balanced to Unbalanced Level), -16dB to +19dB (Unbalanced to Balanced Level)
Special Features:
Bidirectional Format Conversion-Balanced Stereo Audio to Unbalanced Stereo Audio and Unbalanced Stereo Audio to Balanced Stereo Audio Simultaneously, Connector-Terminal Blocks (balanced & Unbalanced), Level (Gain) Control-Independent L & R Adjustment Whil
Maximum Operating Temperature:
+40°C
Applications:
Video and Audio Production Facilities, Audio Recording Studios, Live Sound
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply, Mounting Bracket
Performance
Maximum Output Resolution:
Balanced:21dBu, Unbalanced:21dBu@max Gain
Signal-to-Noise Ratio:
95/87dB ( Balanced to Unbalanced, Unbalanced to Balanced, Unweighted)
Total Harmonic Distortion:
0.005%
Inputs and Ports
Input Port Type:
1xUnbalanced Audio Stereo on a 3-Pin Terminal Block Connector, 1xBalanced Audio Stereo on a 5-in Terminal Block
Output Port Type:
1xBalanced Audio Stereo on a 5-Pin Terminal Block Connector, 1xUnbalanced Audio Stereo on a 3-Pin Terminal Block Connector
Power
Voltage Rating:
12V DC
Current Rating:
280mA
Dimensions
Width:
12cm
Height:
2.4cm
Weight:
0.2kg
