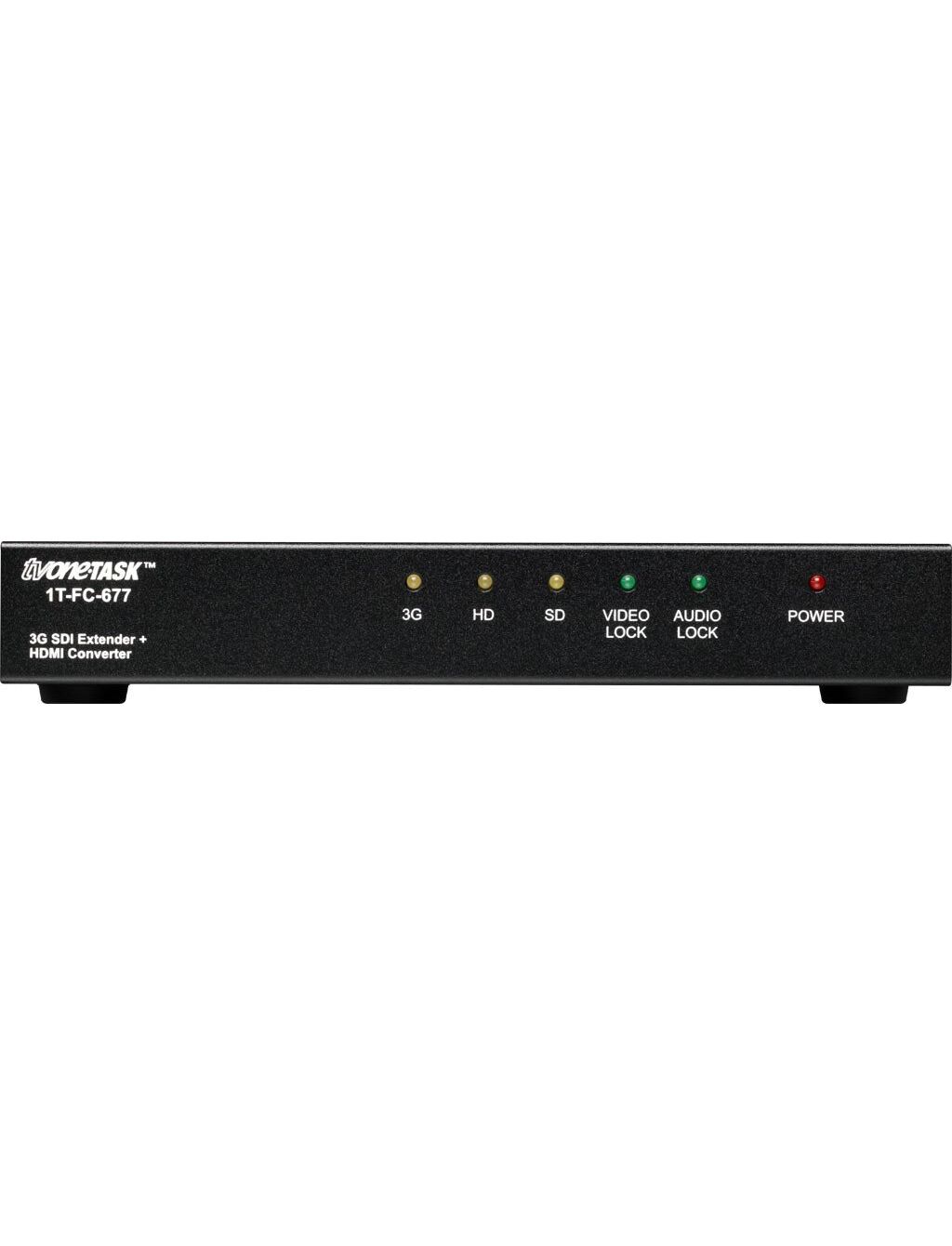

1T-FC-677 3G/HD/SD-SDI to HDMI v1.3 Converter with built-in SDI Distribution Amplifier
Please sign in so that we can notify you about a reply

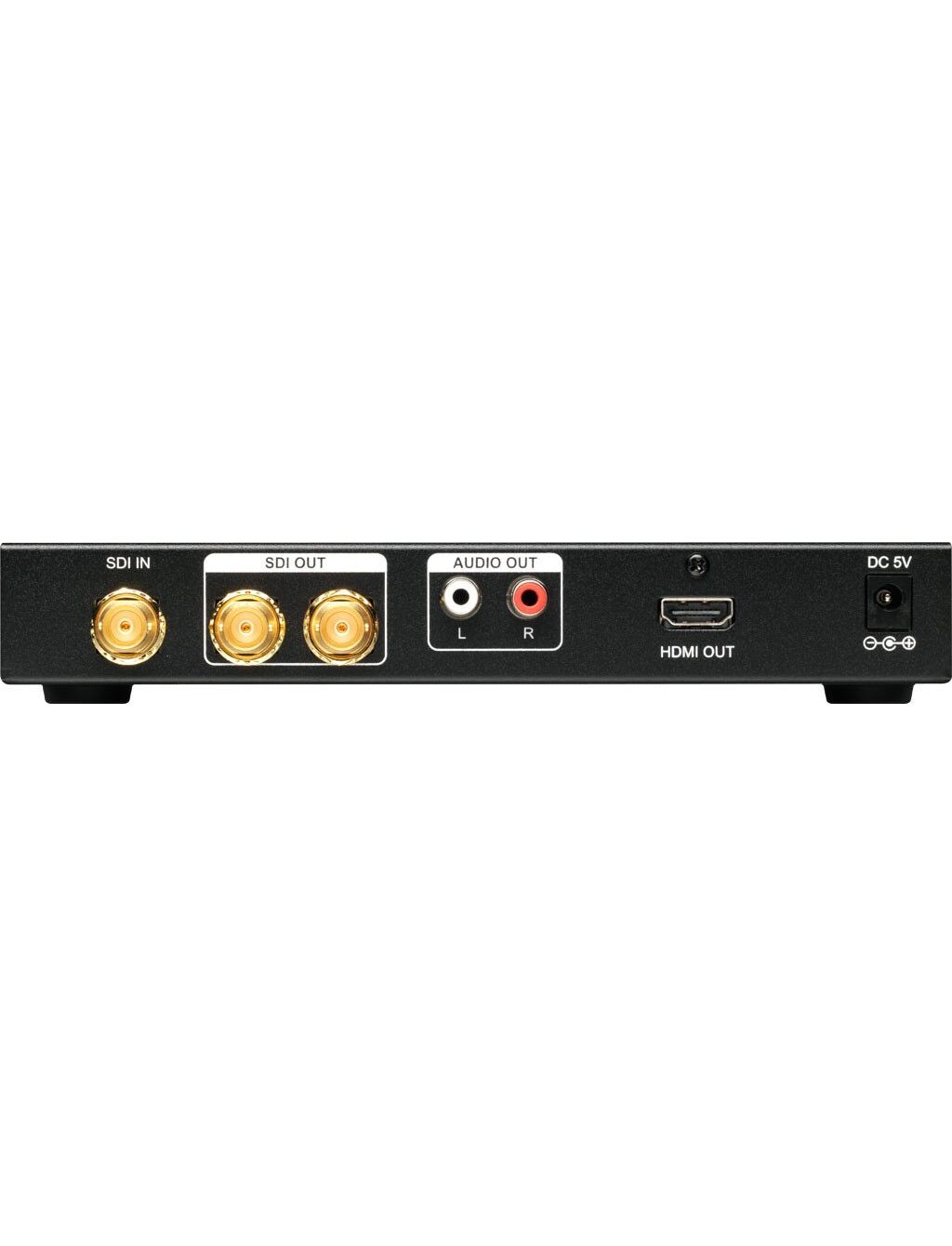

1T-FC-677 3G-SDI Extender with HDMI Converter allows SD-SDI, HD-SDI and 3G-SDI signals to be displayed on either an SDI and an HDMI monitor simultaneously. The high Bitrate processing of 2.970 Gbit/s ensures fast signal transmission without signal loss and also allows great flexibility in monitor selection since extremely high quality displays can be accomplished on either a high resolution SDI monitor or high resolution HDMI display. Even greater utility is provided by the unit’s SDI Extender capability. Two Equalized and Re-clocked SDI outputs are provided. Automatic input signal type detection is provided and up to 8 channels of Audio De-Embedding is possible. SDI Audio channels are automatically detected and are output over HDMI as either LPCM 2.0 or LPCM 7.1. If there are less than 8 active channels of audio, the 1T-FC-677 will automatically select the first 2 channels and output them over the analog stereo and HDMI outputs as LPCM 2.0. If there are 8 active channels, the first 2 channels will be output over the analog stereo outputs and the HDMI output will contain a full LPCM 7.1 audio signal. The unit employs the unique TV One-task locking DC power connector to enhance overall system mechanical security.
Features- 3G, SD and HD-SDI to HDMI Signal Conversion
- Simultaneous Display of 3G SDI & HDMI
- Operation at 2.970Gb/s, 2.970/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s
- Supports SMPTE 425M(A&B), 424M, 292M, 259MC
- Equalized and Re-Clocked Looped Output
- Integrated 8-Channel 48Khz Audio De-Embedder
- LPCM 2.0 or LPCM 7.1 over the HDMI output
- Automatic Video Detection of 3GI, SD & HD-SDI
- Conversion of SMPTE 425M B to A for 1080p
- Cascade multiple units for maximum flexibility
- Allowable SDI Transmission Distances of 300m for SD, 200m for HD, 100m for 3G
- Locking DC Connector
Brand:
tvONE
Specifications
Product Type:
Format Converter
Special Features:
Signal Conversion, Simultaneous Display of 3G SDI & HDMI, Equalized and Re-Clocked Looped Output, Audio De-Embedder, Automatic Video Detection, Cascade Multiple Unit, Locking DC Connector
Maximum Operating Temperature:
40°C
Colour:
Black
Applications:
Format Conversion
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
(1) Power Adapter, (1) User Manual
Performance
Resolution:
480i, 576i, 720pixels, 1080i, 1080pixels
Output Signal Type:
SDI
Output Timing:
1080pixels
Inputs and Ports
Input Port Type:
3G, HD, SD-SDI
Power
Voltage Rating:
5V
Current Rating:
2.6A
Standards
Standards Met:
FCC, CE, RoHS, UL, CUL, PSE, GS
Dimensions
Width:
2cm
Depth:
10.3cm
Height:
3cm
Weight:
585g
