CM-388N HDMI to CV/SV Converter with HDMI Bypass
Please sign in so that we can notify you about a reply

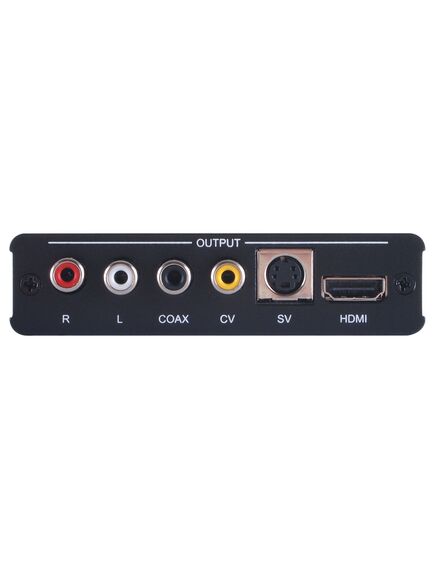

The HDMI to CV/S-Video Converter is designed to convert the digital signal from HDMI (or DVI) source to analog signal of NTSC or PAL system, with L/R stereo audio. As well as S-Video and Composite video outputs, it also provides an HDMI bypass output to deliver the original signal, and a Coaxial output to send S/PDIF digital audio to an amplifier. Not only these, the device also has manual selection of underscan and overscan on output image to ensure the screen best fit for viewer’s pleasantation. And, the model has a special Apple Mode switch which allows user to use Apple TV or other Apple devices as source equipment.
Features
- Converts video signal from HDMI source to NTSC or PAL signal
- Converts HDMI audio to analog stereo audi
- Accepts a wide range of HDTV input resolutions, from 480i to 1080p@60Hz and PC from VGA@60Hz to WUXGA@60Hz (RB)
- Supports Coaxial input audio sample rate 44.1KHz, 48KHz and 96KHz
- Output image overscan or underscan switch ensure best fit on screen
- Apple Mode switch guarrantees the use of Apple devices
Brand:
Cypress Technology
Specifications
Product Type:
HDMI to CV/SV Converter
Silkscreen Color:
Black
Special Features:
Converts Video Signal From HDMI Source to NTSC or PAL Signal, Converts HDMI Audio to Analog Stereo Audio, Output Image Overscan Or Underscan Switch Ensure Best Fit on Screen, Apple Mode Switch Guarrantees the Use of Apple Devices
Power Rating:
3.5W
Maximum Operating Temperature:
+40°C
Chassis Material:
Aluminium
Applications:
HDMI to Composite Video Or S-Video Signal Conversion, HDMI to Ntsc/Pal System Conversion, HDMI to Sd Resolution for Recording/Monitoring
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xHDMI Repeater with Video Output, 1x5V/2.6A DC Power Adaptor, Operation Manual
Performance
Resolution:
HDMI:1920X1080pixels@60Hz(Input)(Output), CV/SV:480i@60Hz/576i@50Hz(Output)
Inputs and Ports
Input Port Type:
HDMI-Type A, 1XUSB Type B
Input Signal Type:
HDMI to NTSC/PAL
Power
Voltage Rating:
5V
Current Rating:
2.6A
Standards
Standards Met:
UL Listed, CE, FCC Complaint
Dimensions
Width:
10.2cm
Depth:
14.6cm
Height:
2.5cm
Weight:
302g
