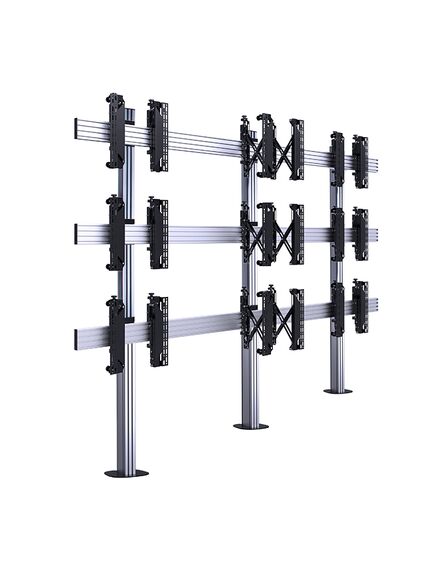

BT8372-3x3-60/BB 3 x 3 Universal Bolt Down Video Wall Stand, 50 kg Loading Capacity, Black, 55 to 60" Screen
Please sign in so that we can notify you about a reply
Designed to mount videowalls, the BT8372 is a fixed position mounting solution with a universal design suitable for all videowall screens from 32" to 75". Ideal for retail displays and other applications with minimal floor space, the BT8372 is part of B-Tech's dynamic System X range; a contemporary mounting solution which is lightweight yet incredibly strong, has a high-end aesthetic quality and comes with important time saving features, such as tool-less micro-adjustment and a universal screen position spacer to speed up the installation process. Off-the-shelf 2x2 and 3x3 packages are available for the BT8372 or for a custom configuration please contact us.
Features- Designed for screens up to 75" (190cm) / 50kg (110lbs) (per screen)
- Configurable mounting solution available to order to your requirements, from stock - see configurator info
- Specify other requirements using the System X configuration tool
- Suitable for landscape or portrait mounting
- Small footprint for an unobtrusive installation into confined areas
- Tool-less micro-adjustments for seamless screen alignment
- Integrated cable management
- Collar compatible accessories such as shelves can be fitted directly to the extrusion
- Includes re-usable screen position spacer to aid installation of screens
- Safety screws help prevent unauthorised removal of screens
- All mounting hardware included
- Off-the-shelf kit designed to mount 60" (152.4cm) screens in a 3x3 configuration
- Recommended screen size: 55" (139.7cm) - 60" (152.4cm)
- Max load: 50kg (per screen)
- VESA® and non-VESA fixings: up to 600mmx400mm
- Dimensions:W: 3505mm (138") H: 2406mm (94.7") up to 2608mm (102.7")
- Base Thickness: 6mm (0.23")
- Colour (base & interface arms): Black
- Colour (columns & rails): Black or Silver
Brand:
B-Tech AV Mounts
Specifications
Product Type:
Universal Bolt Down Video Wall Stand
Screen Size:
55 to 60in
Mounting Hole Pattern:
60 to 40cm (VESA)
Colour:
Black
Performance
Load Capacity:
50kg
Dimensions
Width:
350.5cm
Depth:
22.7cm
Height:
257.6cm
Shipping Weight:
33kg (Carton), 25kg (Carton), 19kg (Carton), 12.5kg (Carton), 14Kg (Carton), 7.5kg (Carton)
